ASR K Chassis

*ALL ASR-K ARE MADE TO ORDER, LEAD TIME OF 10 TO 15 BUSINESS DAYS*

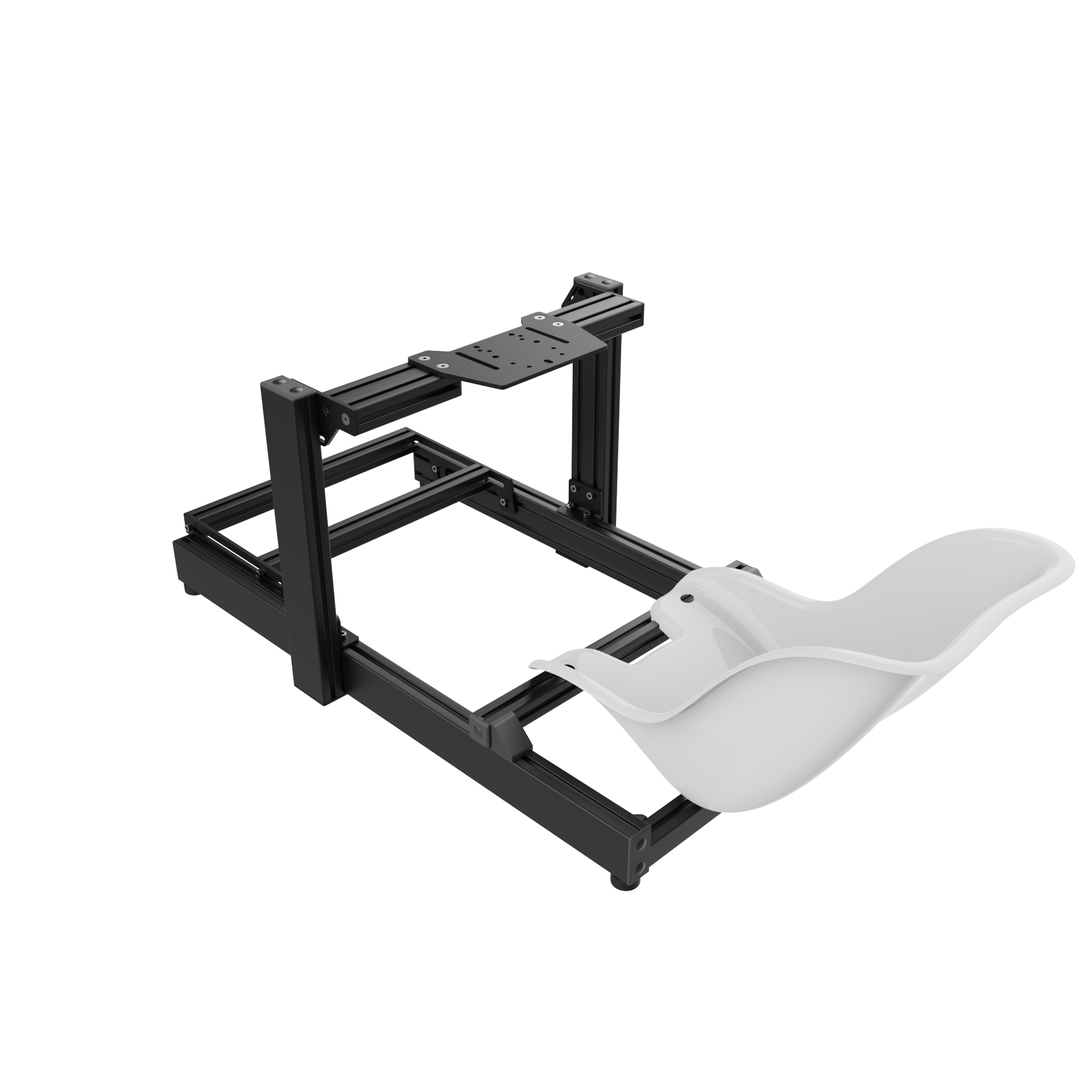

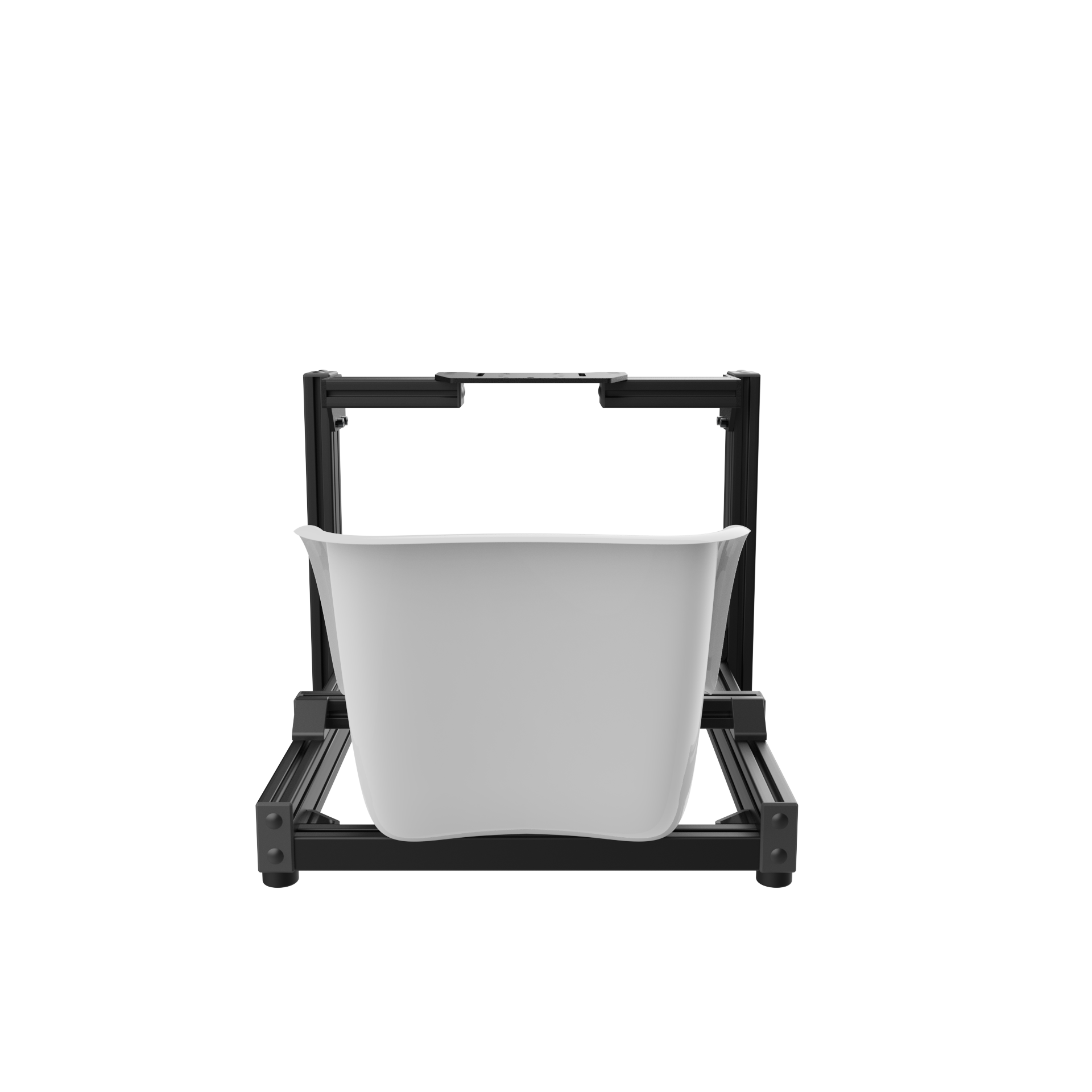

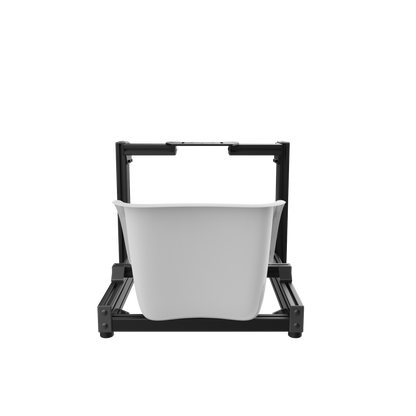

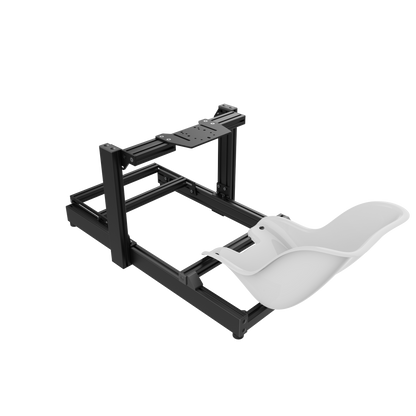

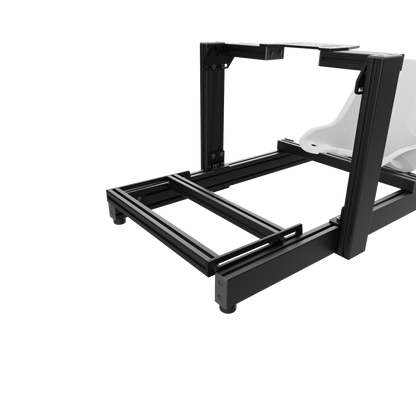

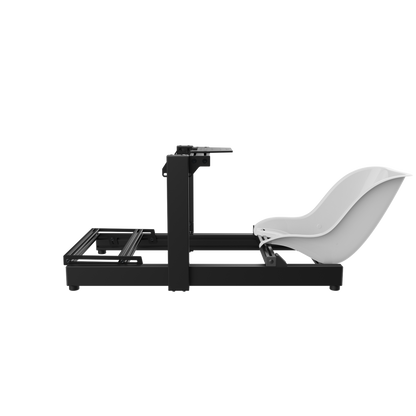

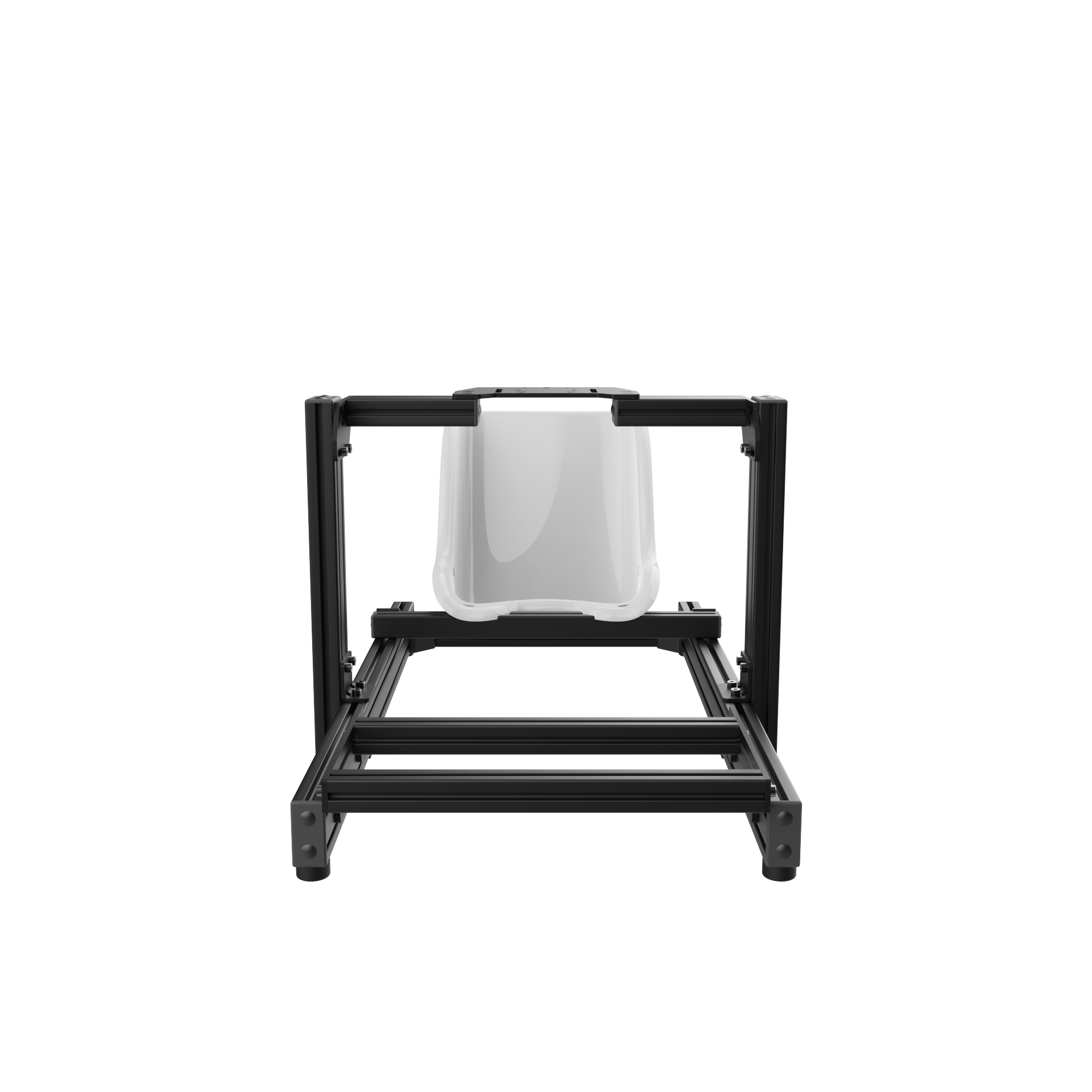

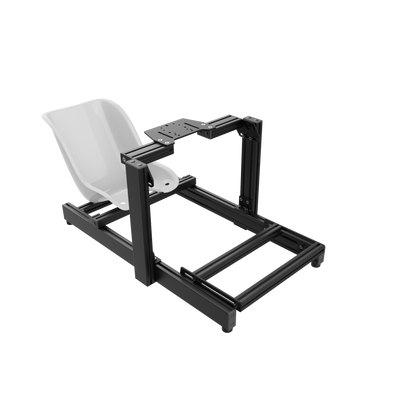

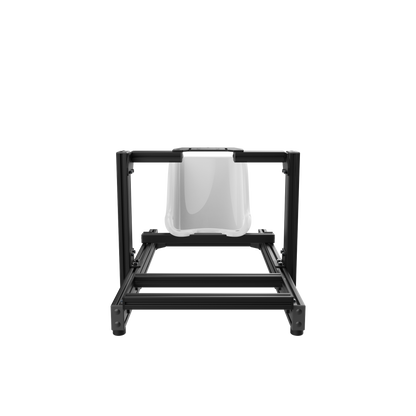

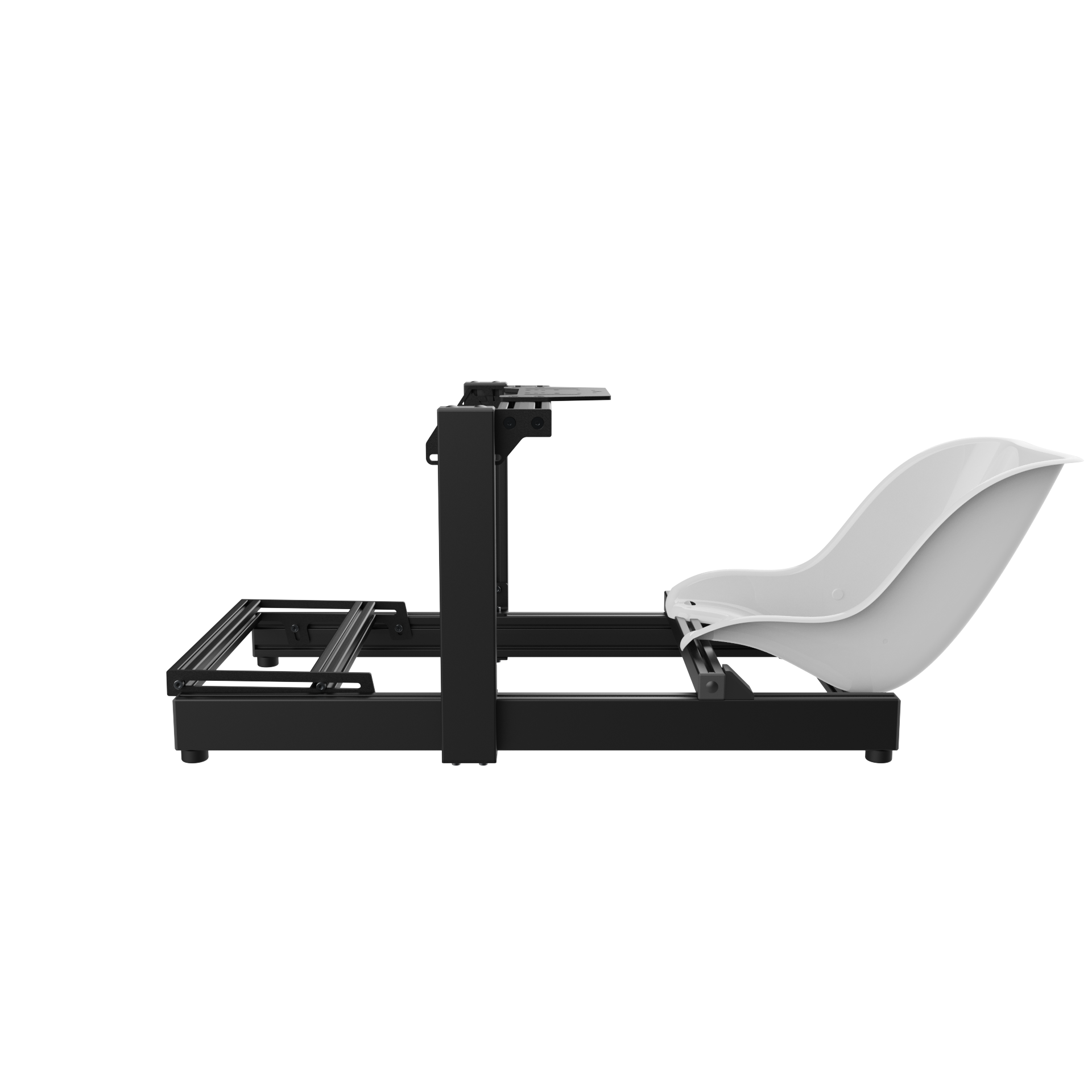

The ASR-K Generation 2 is a premium entry-level sim racing chassis designed specifically for kids ages 4 to 12 and karting enthusiasts. Built with improvements inspired by our flagship ASR PRO, this updated design features a brand-new adjustable wheel deck, a reinforced pedal tray with aluminum cross beams and corner gussets, and a more streamlined flat-face aluminum profile for added stability and a cleaner look. Strong enough to support both belt-driven and direct drive wheel bases, the ASR-K delivers unmatched rigidity, adjustability, and durability in a chassis made from top-grade U.S.-sourced alloy aluminum. Affordable, sturdy, and built to grow with young racers, it’s the perfect solution for families looking to introduce kids to sim racing or train for karting at home.

• Available with the seat included or without the seat.
• Karting seat is optional. It is predrilled to fit the ASR-K and includes low profile Button Head M8 bolts to avoid discomfort.
• Produced and packaged in Canada with the utmost care and attention.

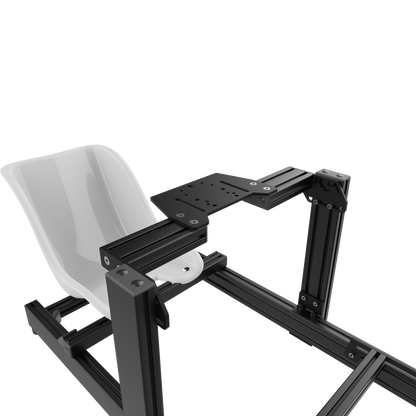

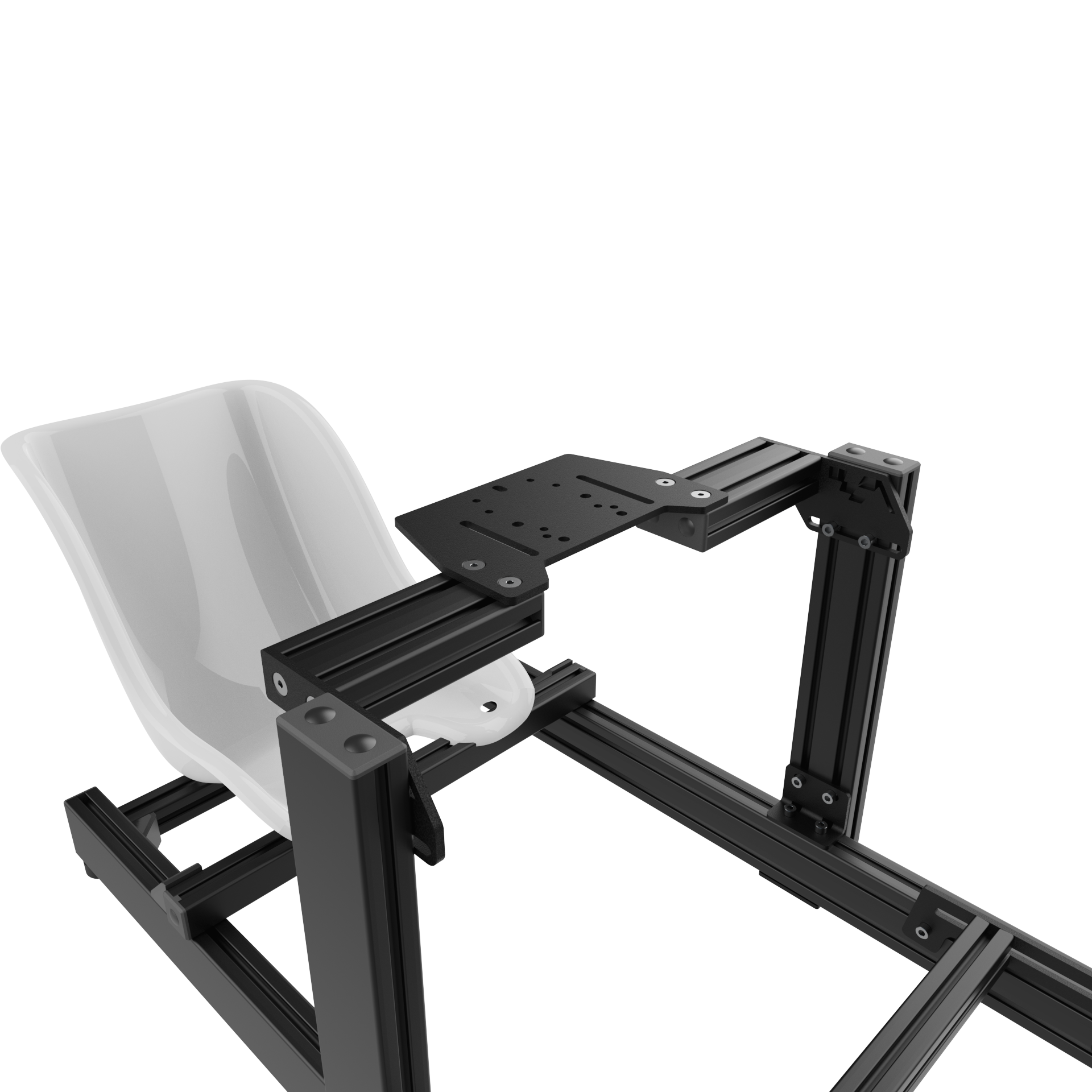

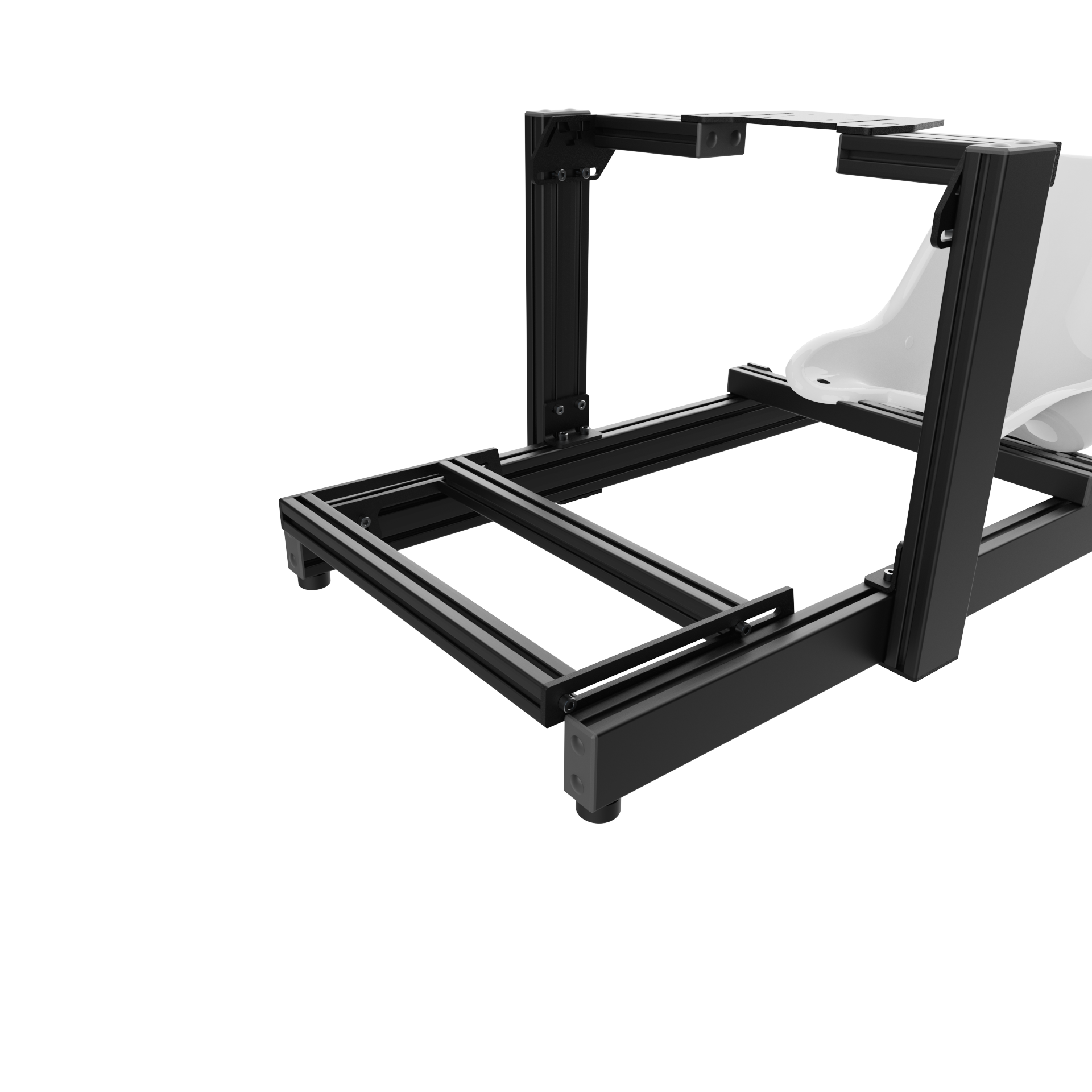

• Highly adjustable wheel deck and pedal plate that give you the opportunity to create a customized and optimal racing position. Also allows for adjustments needed as your kid is growing up.
• Chassis size and format is adequate for kids up to 5 ft and around 110lbs.
• Please note that all steel parts such as Wheel Mounting Plates and Pedal Plates or Trays come in a textured matte black finish (Powder coat)
• Four Wheel Deck options available :
  • Advanced Standard Wheel Deck compatible with bottom mounting wheelbases (Logitech, Thrustmaster, etc.)
  • Podium DD Side Mount (Fanatec Podium DD1/DD2 Series)
  • CSL DD Pro Side Mount (Fanatec CSL DD & GT DD Pro)
  • Front Mount (MiGE Motor-type wheel bases, such as Simucube products, Simagic Alpha / Alpha Mini, VRS products and other front mounting products)

What's Included

• Box 1 (Aluminum)
• 2 x Aluminum profile 40" x 3" x 1.5"
• 2 x Aluminum profile 19" x 3" x 1.5"
• 1 x Aluminum profile 19" x 1.5" x 1.5"
• 2 x Aluminum profile 18.5" x 1.5" x 1.5"
• 1 x Aluminum profile 22" x 1.5" x 1.5"

• Box 2 (Hardware) 10" x 8" x 4"
  • 2 x 1.5" Endcaps
  • 6 x 3" Endcaps
• 4 x Corner Gussets and Plastic Caps
• 36 x M8 Socket Cap Screws (16mm)
• 1x M8 Button Head Screws (12mm)
• 2x M8 Button Head Screws (25mm)
• 31 x M8 T-Nuts
• Endcaps
• 14 x Pushpins
• 4 x Rubber feet
• 4 x M6 Screws (20mm)
• 4 x M6 T-Nuts

• Box 3 (Wheel Deck)
  • 8 x Flathead screws (16mm)
  • 2 x Aluminum profile 6 7/8" x 3" x 1.5"
  • 2 x wheel deck brackets
• Common content

*Depending on configuration, one set of the following is included*

• Standard wheel deck content
• Standard Steel Plate
• 2 x 3" endcaps
• 4 x pushpins
• CSL DD side mount content
• 2 x DD side brackets (L & R)
• 2 x CSL DD spacers
• 4 x M8 Screws (16mm)
• 4 x M8 Screws (20mm)
• Front Mount
• 2 x DD side brackets (L & R)
• 1 x Front Mount Plate
• 4 x M8 screws (16mm)
• 4 x M8 screws (20mm)
• Asetek Mount
• 2 x DD side brackets (L & R)
• 1 x Asetek Mount Plate
• 4 x M8 screws (16mm)
• 4 x M8 screws (20mm)

• Box 4 (Karting Seat)

Compatibility

• Advanced Wheel Deck
• Logitech products
• Thrustmaster products
• Fanatec entry-level and mid-range products (including the CSL DD & GT DD Pro)
• Podium DD Side Mount
• Fanatec Podium series DD1 and DD2
• CSL DD Pro Side Mount
• Fanatec CSL DD
• Fanatec GT DD Pro
• Front Mount
• Simucube 2 Sport, Pro & Ultimate
• VRS Direct Force Pro
• Simagic Alpha / Alpha Mini
• Other MiGE Motor-type wheel bases
• Steel Pedal Plate
  • Sim Pedals Sprint
  • Sim Pedals Ultimate
  • Sim Pedals Ultimate+
• Asetek SimSports Invicta Sim Racing Pedals
• Heusinkveld
• Thrustmaster products
• Fanatec products (Except CSR Pedals)
• Logitech products
• Simtrecs ProPedal GT
• Asetek SimSports Invicta Sim Racing Pedals
• And much more (please inquire for specific pedal sets)

Specifications

• Base composition : 3" x 1.5"
• Steering column composition : 3" x 1.5"

• Base length : 40"
• Base width : 22"
• Chassis height from rubber feet to tip of the steering column : 20"

Documents

Assembly Guide - ASR-K (Gen 2) - PDF HERE

More assembly guides available on ASR's dedicated page.

Shipping and Lead Time

• FREE SHIPPING to all of the Continental U.S. and Canada (excluding Yukon, Northwest Territories & Nunavut).
• We ship from Montreal in Canada.
• Once the items have shipped, transit time typically takes between 2 and 4 business days
• Please note that all large items, such as our SimRacing Chassis, Monitor Stands and Racing Seats, might not arrive on the same day as other parts of your order. Because of their weight and size, these boxes get sorted differently at our shipping partner's logistics hub.

Warranty

Advanced SimRacing-brand products come with a free and complete lifetime replacement warranty that covers any and all hardware durability issue and damage stemming from proper assembly and residential usage of the product. All hardware parts, aluminum beams and steel plates or gussets are covered under this warranty. Please contact info@advancedsimracing.com for information or claims in regards to this lifetime warranty.

Warranty coverage limitations:

• Any condition resulting from other than ordinary residential wear or any use for which the product was not intended, such as use in rental, contract trade or commercial use
• Any condition resulting from incorrect or inadequate manipulation, maintenance or care of the product
• Damage resulting from misuse, abuse, negligence, accidents or shipping damage
• Any esthetic damage such as scratches and chipping that might occur during normal residential manipulation, assembly and operation of the product
• Normal and expected wear and tear
• Damages incurred during transportation by our shipping partners or by the customers upon reception of the product
• Dissatisfaction due to buyer's remorse.
