Inverted Pedal Tray

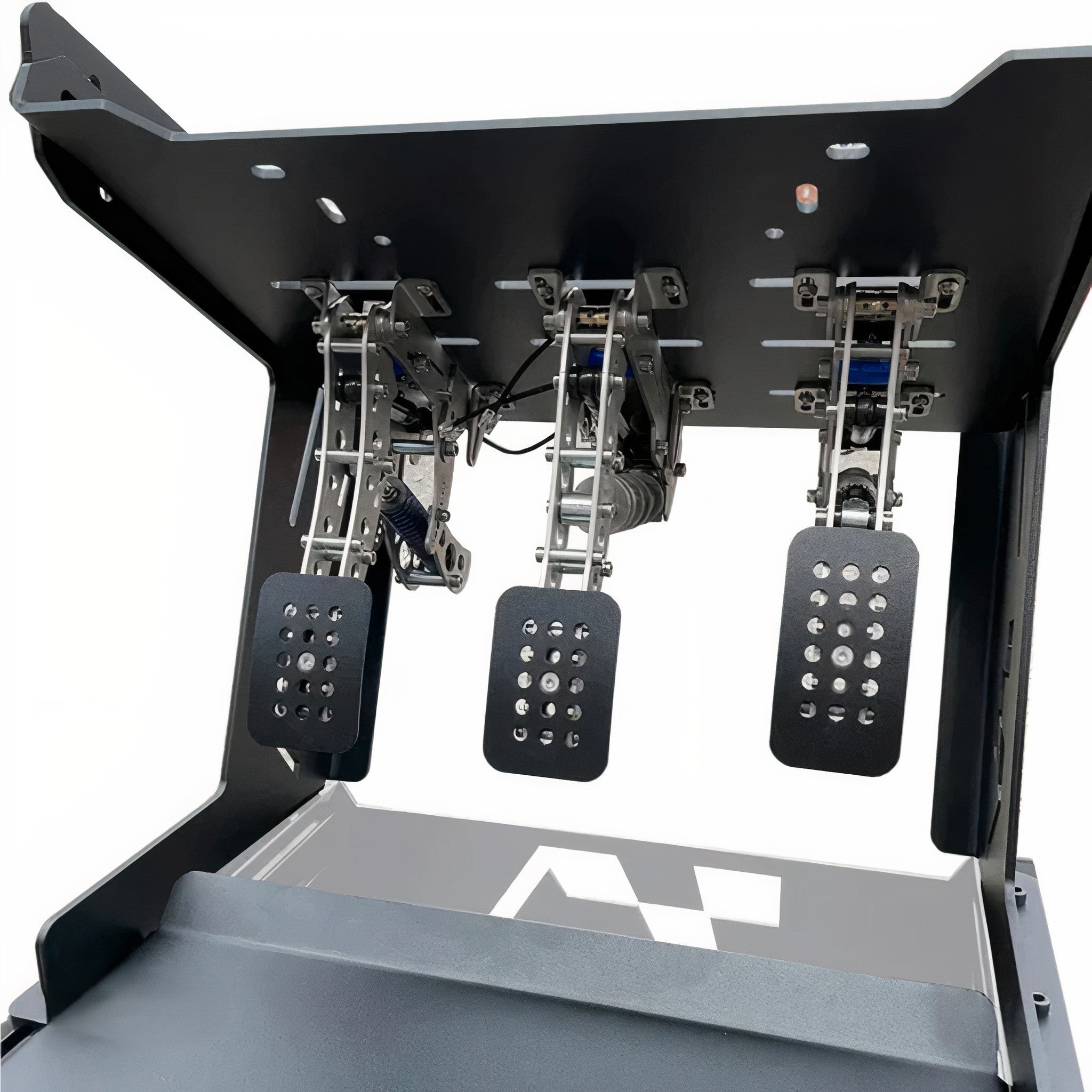

Our custom-designed Inverted Pedal Tray lets you achieve pedal placement and travel that replicate real GT-style race cars. Constructed entirely from 3/16" thick reinforced bent steel plates, this heavy-duty tray eliminates any potential flex caused by the force applied during intense racing sessions. With no weak points in its design, it can handle even the most high-performance, professional-grade pedal sets, ensuring they operate at their maximum potential.

Like our standard pedal plate included with ASR chassis, the Inverted Pedal Tray is compatible with a wide range of pedal sets from leading manufacturers. Its top pedal plate offers exceptional adjustability, with long mounting channels in the side support plates allowing for angles from 15 to 55 degrees. An optional adjustable Heel Rest can be positioned for optimal racing ergonomics, improving comfort and precision in your footwork. ASR chassis owners can also repurpose their original pedal plate as a heel rest, enabling configurations such as mounting the gas pedal upright while inverting the brake and clutch pedals.

• Built with 3/16" thick reinforced bent steel plates
• Mounts on top of your ASR chassis' base
• Extremely adjustable top pedal plate (15 to 55 degrees, with a 3 inch vertical height adjustment when the pedal is angled at 25 degrees)
• Compatible with a wide range of pedal sets from all major manufacturers

What's Included

• 2 x 3/16" reinforced bent steel side support plates
• 1 x 3/16" reinforced bent steel pedal plate
• 6 x M8 Screws (16mm)
• 6 x M8 T-Nuts
• 4 x M8 Screws (20mm)
• 4 x M8 Lock Nuts
• 4 x M8 Washers
• OPTIONAL : Heel Rest
• Heel rest plate
• 4 x M8 12mm screws
• 4 x M8 T-Nuts
• REQUIRED TOOLS
• 6mm Allen key
• 13mm Wrench

Compatibility

• CHASSIS
• The Inverted Pedal Tray is compatible with the ASR 6 and the ASR 4. It is also compatible with the ASR 3 using the original Pedal Tray (but not with the combination of the optional Heel Rest that can be purchased with this product)
• PEDALS
• The Inverted Pedal Tray offers the same compatibility range as our Pedal Tray that comes with all of our chassis
• Heusinkveld Sim Pedal Sprint and Ultimate
• Meca CUP1 Sim Racing Pedals
• VRS Direct Force Pro Pedals
• Fanatec (all models, including the V3 CSL Elite)
• Thrustmaster (all models)
• Logitech (all models)
• Any pedal sets that can be "hard mounted" on a steel base
• And much more (please inquire for more compatibility options)

Specifications

• Pedal support plate vertical height range : 2 inches up and down, with an additional range of 1 inch if you flip the bent steel pedal plate upside down (applicable only when the top pedal plate is installed at a 25 degree angle)
• Top pedal plate angle range : 15 to 55 degrees

Shipping and Lead Time

• FREE SHIPPING to all of the Continental U.S. and Canada (excluding Yukon, Northwest Territories & Nunavut).
• We ship from Montreal in Canada
• Our typical lead time before shipping out orders is 5 to 7 business days. This varies depending on the purchased items and our shipping queue.

• Once the items have shipped, transit time typically takes between 2 and 4 business days
• Please note that all large items, such as our SimRacing Chassis, Monitor Stands and Racing Seats, might not arrive on the same day as other parts of your order. Because of their weight and size, these boxes get sorted differently at our shipping partner's logistics hub.

Warranty

Advanced SimRacing-brand products come with a free and complete lifetime replacement warranty that covers any and all hardware durability issue and damage stemming from proper assembly and residential usage of the product. All hardware parts, aluminum beams and steel plates or gussets are covered under this warranty. Please contact info@advancedsimracing.com for information or claims in regards to this lifetime warranty.

Warranty coverage limitations:

• Any condition resulting from other than ordinary residential wear or any use for which the product was not intended, such as use in rental, contract trade or commercial use
• Any condition resulting from incorrect or inadequate manipulation, maintenance or care of the product
• Damage resulting from misuse, abuse, negligence, accidents or shipping damage
• Any esthetic damage such as scratches and chipping that might occur during normal residential manipulation, assembly and operation of the product
• Normal and expected wear and tear
• Damages incurred during transportation by our shipping partners or by the customers upon reception of the product
• Dissatisfaction due to buyer's remorse.
