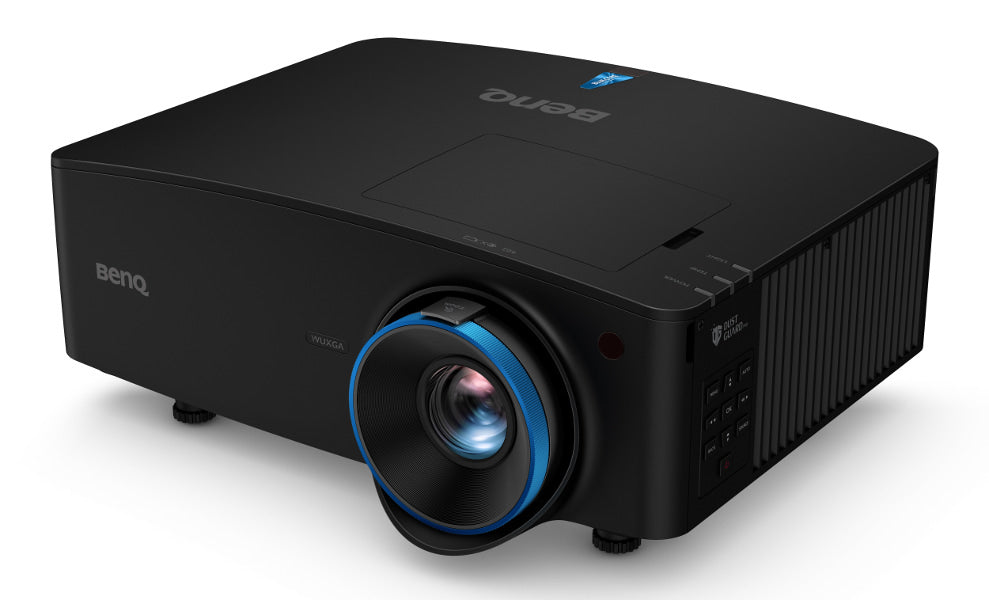

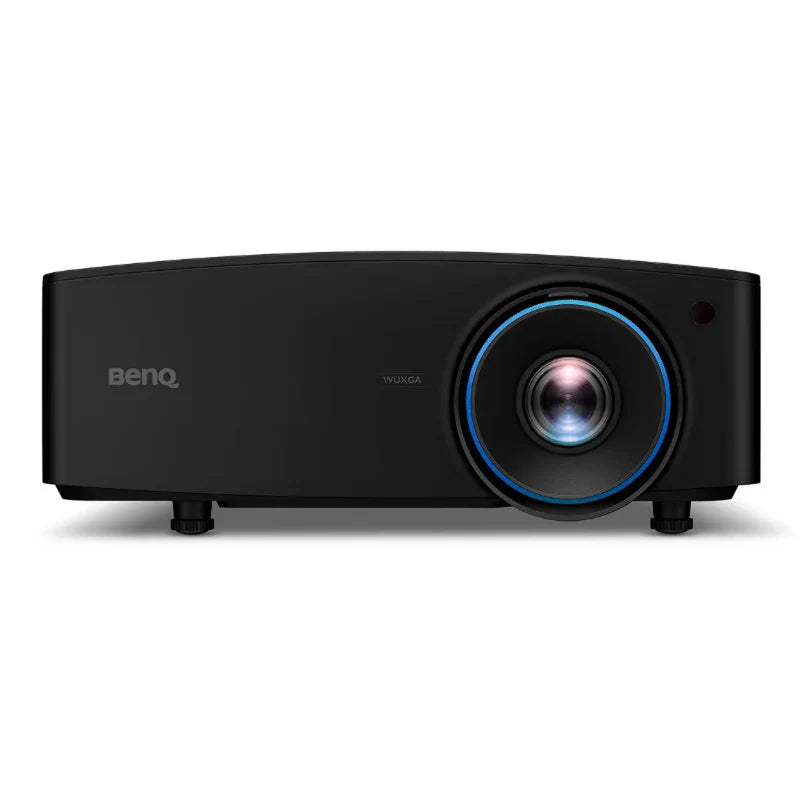

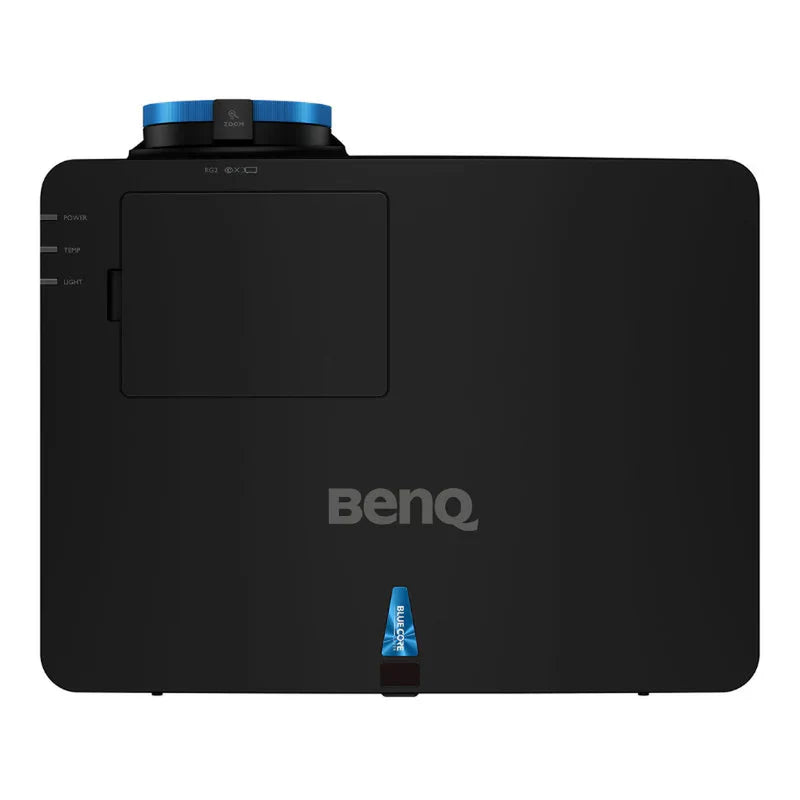

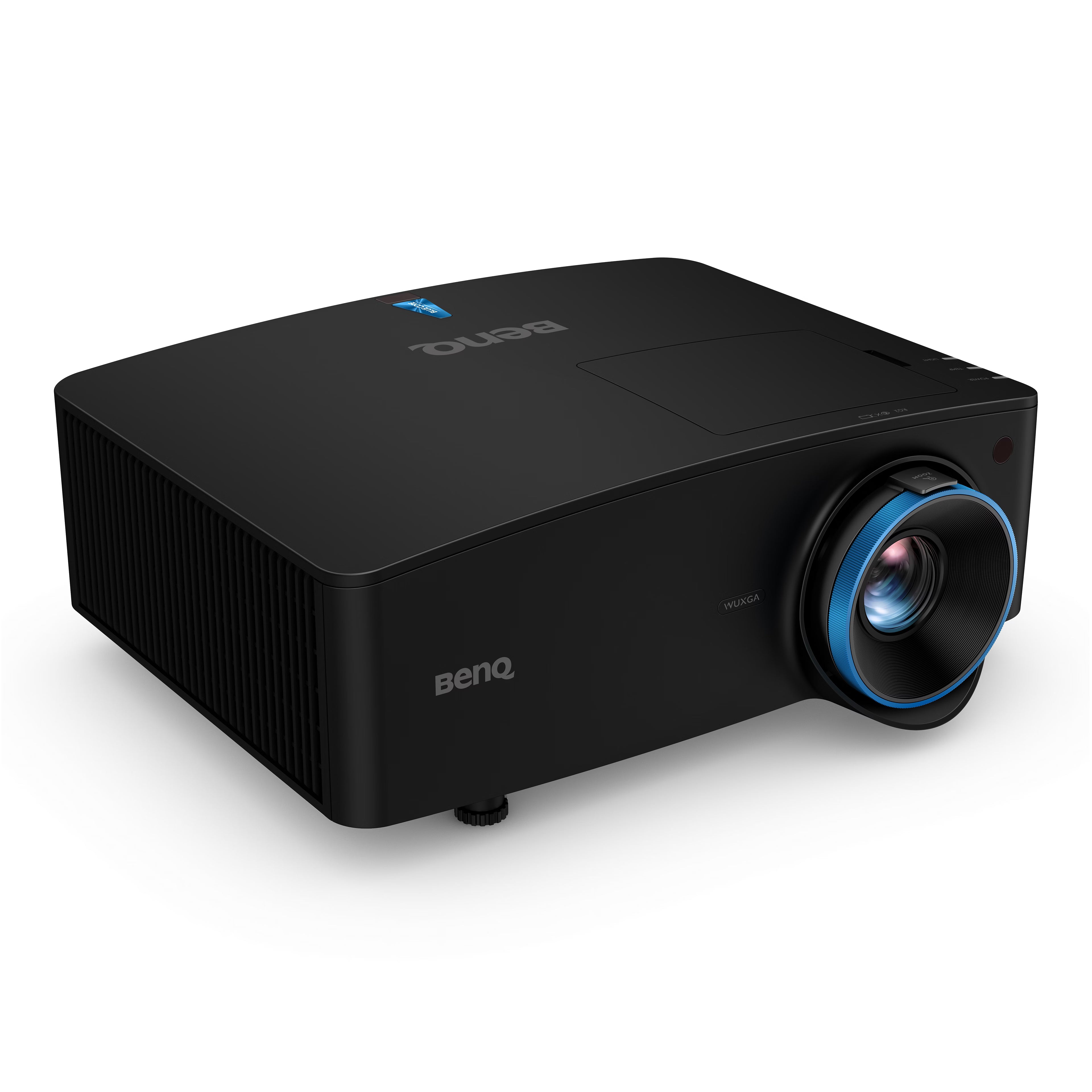

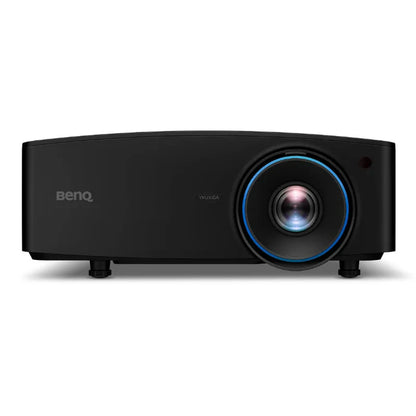

BenQ LU935ST – 5500 Lumens Short Throw Laser Golf Simulator Projector
Elevate your indoor golf simulator with the BenQ LU935ST Short Throw Laser Projector, engineered for precision, brightness, and long-lasting performance. Designed specifically for golf simulation, this projector delivers 5500 lumens of brightness and a 3,000,000:1 contrast ratio, ensuring crisp detail and lifelike color whether you’re on the fairway, green, or tee box.
Powered by BlueCore Laser Technology, the LU935ST offers up to 20,000 hours of vibrant projection, four times the lifespan of traditional lamp projectors—cutting down on costly maintenance and replacements. Its short throw ratio (0.81–0.89) delivers a large, immersive image in limited spaces, making it perfect for home or commercial golf simulators.
Installation is simple and flexible thanks to vertical and horizontal lens shift, 2D keystone correction, and corner fit adjustment for perfect alignment every time. Whether you’re building a new setup or upgrading your simulator, the BenQ LU935ST brings unmatched clarity, reliability, and convenience to your golf experience.
Features
-
Unrivaled Visual Clarity - Experience every detail with the LU935ST’s native 1080p Full HD resolution. From lush fairways to subtle green contours, this projector delivers lifelike visuals that enhance both practice sessions and immersive gameplay.
-
Short Throw Performance - With a 0.81–0.89 throw ratio, the LU935ST projects large images from short distances—filling a 12-foot screen from under 10 feet away. Stand closer to the screen without casting shadows for uninterrupted play.
-
Brilliant Brightness & Color Accuracy - Featuring 5500 ANSI lumens, the LU935ST produces vibrant, true-to-life visuals with exceptional brightness and color accuracy, even in well-lit spaces.
-
Precision Setup Made Easy - Achieve a perfectly aligned image using vertical lens shift and 2D keystone correction. Fine-tune projection in moments for seamless coverage and distortion-free visuals.
-
Long-Lasting BlueCore Laser Technology - Built with BlueCore Laser Technology, the LU935ST delivers consistent, high-quality images for up to 20,000 hours of use—four times longer than traditional lamp projectors. This ensures lower maintenance costs and reliable long-term performance.
-
Immersive Audio Experience - Dual 10W built-in speakers bring your golf simulator to life with dynamic sound. Hear every swing, course ambiance, and impact for added realism and immersion.
What's Included
- BenQ LU935ST Projector ×1
- Remote Control with Batteries ×1
- Power Cord ×1
- Installation Guide ×1
- Warranty Card ×1
Specifications
Display:
- Brightness (ANSI lumens): 5500
- Native Resolution: WUXGA (1920x1200)
- Native Aspect Ratio: 16:10
- Selectable Aspect Ratios: 16:9, 16:10, 4:3, 2.4:1
- Contrast Ratio (FOFO): 3,000,000:1
- Display Color: 30-bit (1.07 billion colors)
- Light Source: Laser
- Light Source Life: 20,000 hrs
Optical:
- Throw Ratio: 0.81 ~ 0.89
- Zoom Ratio: 1.1x
- Lens: F/# = 1.83 ~ 1.86, f = 8.6 ~ 9.4 mm
- Projection Offset (Full-Height): 0%
- Keystone Adjustment: 2D, Vertical ± 30 degrees; Horizontal ± 30 degrees
- Lens Shift Vertical: Vertical: -60%~ +60% Horizontal: -23%~ +23%
Picture:
- Rec. 709 Coverage: 92%
- Picture Modes: 3D, Bright, Golf, Presentation, sRGB, User 1, User 2
Compatibility:
- Input Lag: 33.4 ms (1080p@60Hz)
- Resolution Support: VGA (640 x 480) to 4K UHD (3840 x 2160)
- Horizontal Frequency: 15K~102KHz
- Vertical Scan Rate: 23~120Hz

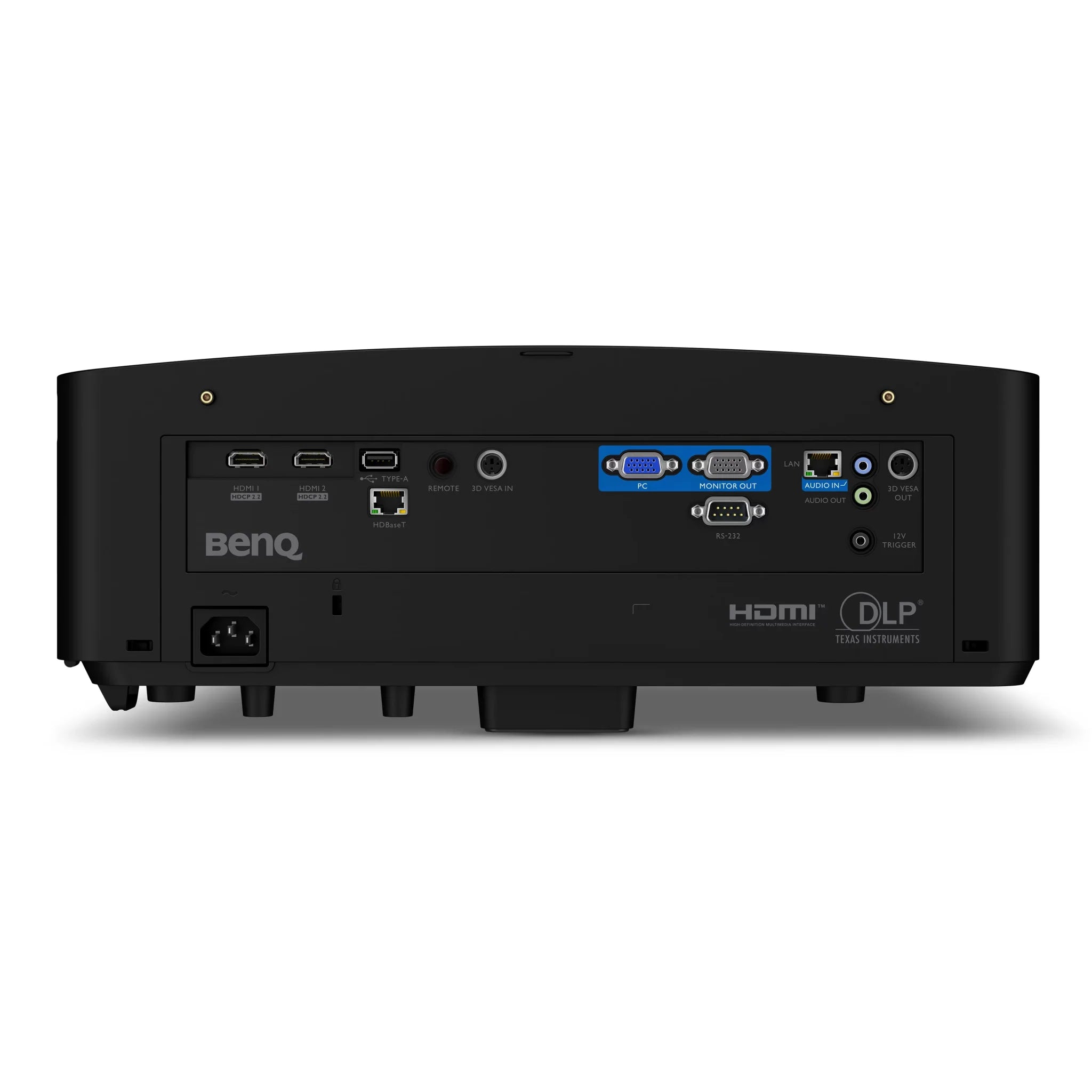

I/O Interface:
- PC in (D-sub 15pin): (x1), PC in-1
- Monitor out (D-sub 15pin): (x1)
- HDMI in: (x2), HDMI-1 (2.0a/HDCP2.2), HDMI-2 (2.0a/HDCP2.2)
- LAN (RJ45): (x1)
- HDBaseT (RJ45): (x1), Video/Audio
- 3D Sync in: (x1)
- 3D Sync out: (x1)
- USB Type A: (x1), USB Type A-1 (2.0/Power Supply1.5A)
- RS232 in (DB-9pin): (x1)
- Wired Remote in (3.5mm Mini Jack): (x1)
- DC 12V Trigger (3.5mm Jack): (x1)
Audio:
- Speaker: (x2), 10W
- Audio in (3.5mm Mini Jack): (x1)
- Audio out (3.5mm Mini Jack): (x1)
Environment:
- Operating Temperature: 0~40℃
- Power Supply: AC 100 to 240 V, 50/60 Hz
- Typical Power Consumption (110V): 440W
- Stand-by Power Consumption: <0.5W
- Network Stand-by Power Consumption: <2W
Accessories:
- 3D Glasses: (Optional), DGD5
- Universal Ceiling Mount: (Optional), CM00G3
Dimension & Weight:
- Dimensions (in): 6.5”H x 16.3”W x 13.81”D
- Net Weight (kg): 7
Projection System:
Manufacturer Shipping Policy
TruSimPlay coordinates the production and shipment of all products to ensure reliable, timely delivery. Most items ship within 3–10 business days, depending on the build schedule and product type. Tracking information is provided once your order ships. For full details, please refer to the TruSimPlay Shipping Policy.
BenQ Policy: This product includes free ground shipping within the lower 48 U.S. states.
Manufacturer Returns & Warranty Policy
TruSimPlay processes all returns in accordance with each manufacturer’s published return policy. Most eligible products may be returned within 30 days of delivery unless otherwise stated by the manufacturer. For complete details, including return conditions and restocking fees, please refer to the TruSimPlay Return & Refund Policy.
BenQ Policy: BenQ products may be returned within 30 days of the original shipping date. Items that arrive damaged must be reported within 5 business days for a full refund. All returns must include the original packaging and all accessories.
Return Conditions
- Shipping costs are non-refundable.
- A restocking fee may apply to select products or if physical damage is present that was not caused by BenQ or the shipping carrier.
- Missing items (e.g., remote control) may incur additional charges.
- Refunds are processed once the product is received at a BenQ warehouse; processing typically takes 2–3 weeks.
Warranty Coverage
BenQ offers a 3-year limited warranty on projectors, covering defects in materials and workmanship.
- Warranty service includes repair or replacement through BenQ’s authorized service network.
- The BenQ LU935ST Short Throw Laser Projector includes 3-year or 20,000-hour laser light source coverage (whichever comes first).
- Full warranty details are available HERE.
- If the product is within the warranty period, BenQ provides a free return shipping label to the nearest service center.
- BenQ does not provide replacement boxes or packing materials; using the original packaging is strongly recommended.
- For out-of-warranty items, the customer is responsible for shipping and any repair costs.
- Warranty service is available only in the U.S. and Canada.
Warranty claims must be initiated before the warranty period expires. If a claim is not submitted in time, service may be treated as out-of-warranty, and associated costs become the customer’s responsibility.
