Button Box Mount

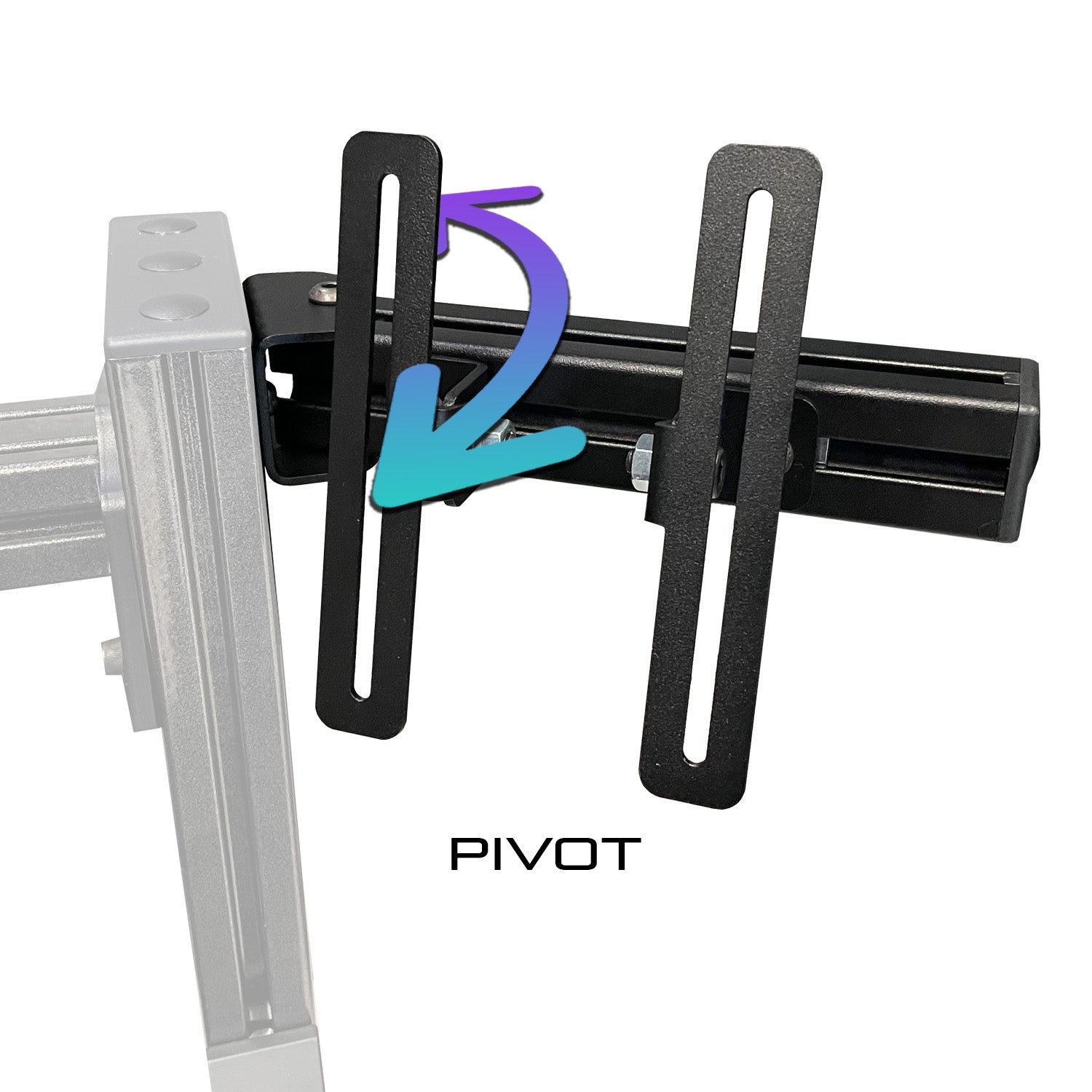

The Button Box Mount is built for universal compatibility and versatile positioning, thanks to its dual sliding Universal Mounting Brackets. With the ability to swivel and tilt, it allows you to place your button box anywhere on your simulator to accurately replicate the feel and layout of a real race car interior. Crafted in Canada from the same high-quality hardware and components used across all our products, this mount delivers durability, adaptability, and precision for any sim racing setup.

What's Included

• Box 1 (Button Box Mount) 9" x 6" x 2"
• 1 x Aluminum profile 8" x 1.5" x 1.5"
• 1 x 3/32" Steel U-Bracket
• 2 x 1/8" Steel L-Bracket
• 2 x Universal Mounting Brackets
• 2 x M6 Screws (12mm)
• 2 x M6 T-Nuts
• 4 x M8 Button Head Screws (12mm)
• 2 x M8 T-Nuts

Compatibility

• All Button Box with fixing points on the back

Specifications

• Maximum gap between both Universal Mounting Brackets : 8"
• Universal Mounting Brackets vertical size : 5"
• Maximum mounting pattern that can be achieved : 8" x 5"
• Universal Mounting Brackets tilt angle range : 90 degrees up or down
• Pivot angle range for the aluminum support beam : 180"
• The Universal Mounting Brackets support either M4, M5 and M6 screws
• Mountable on any aluminum profile part of your Advanced SimRacing chassis

Documents

The Button Box Mount assembly guide is available right here.

More assembly guides available on our dedicated page.
