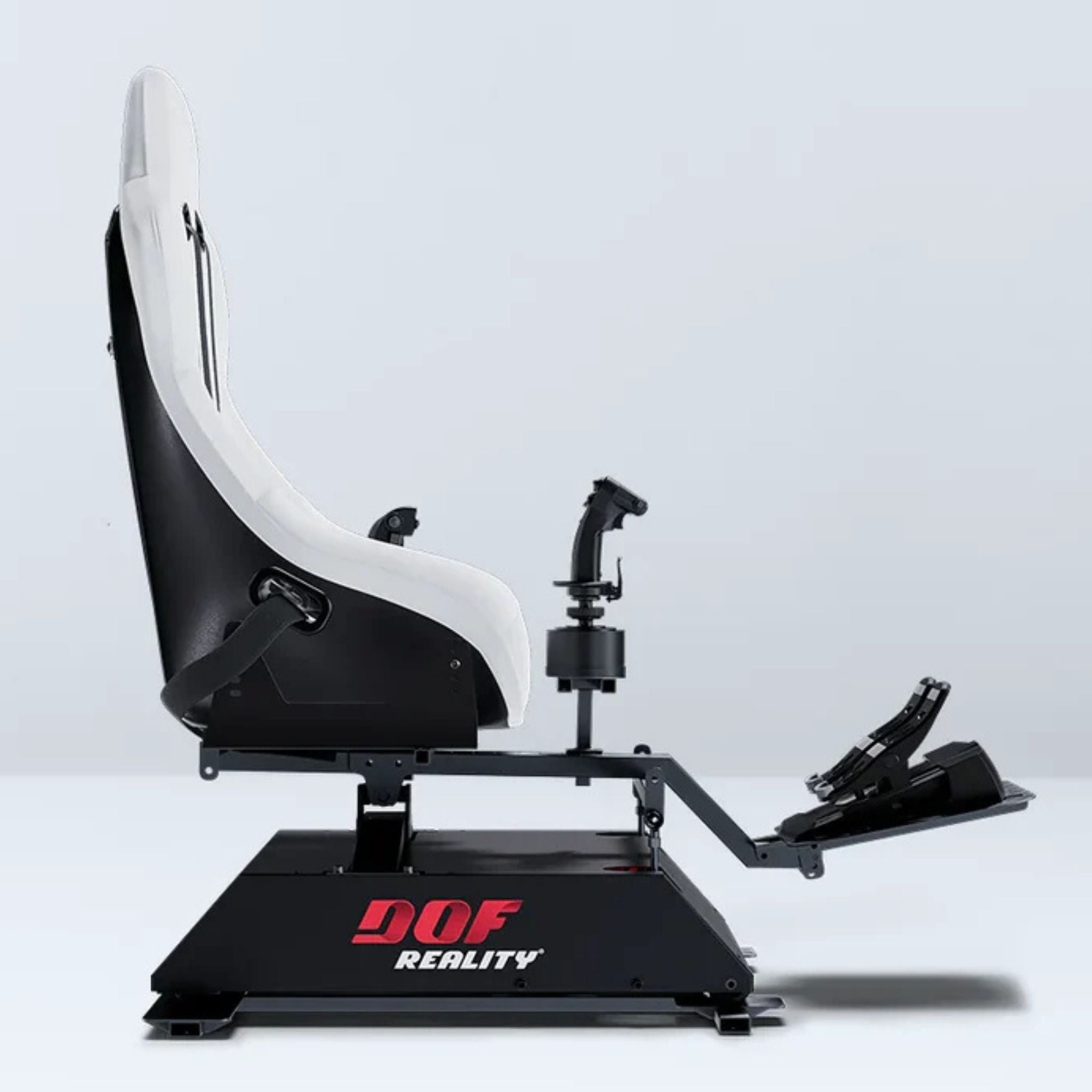

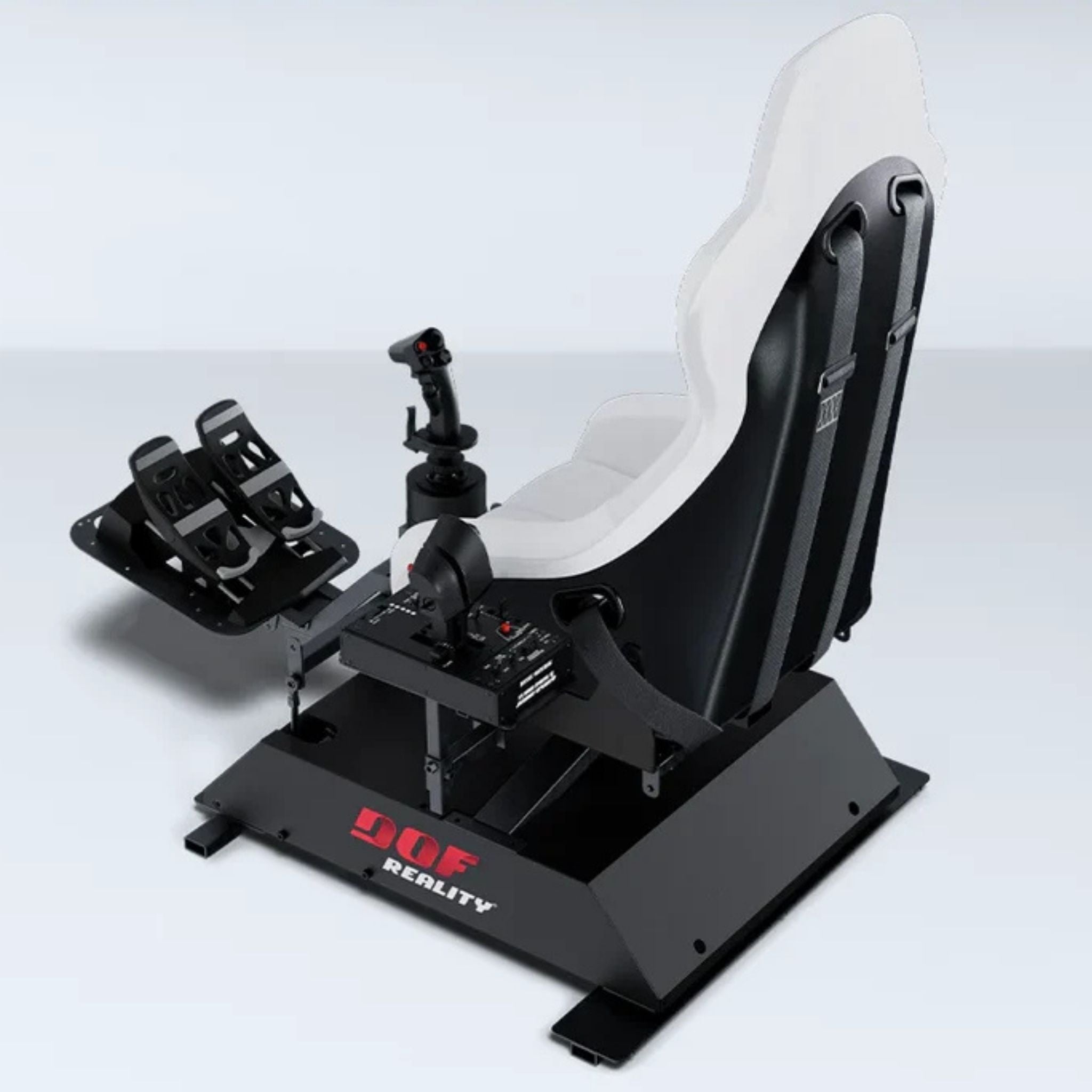

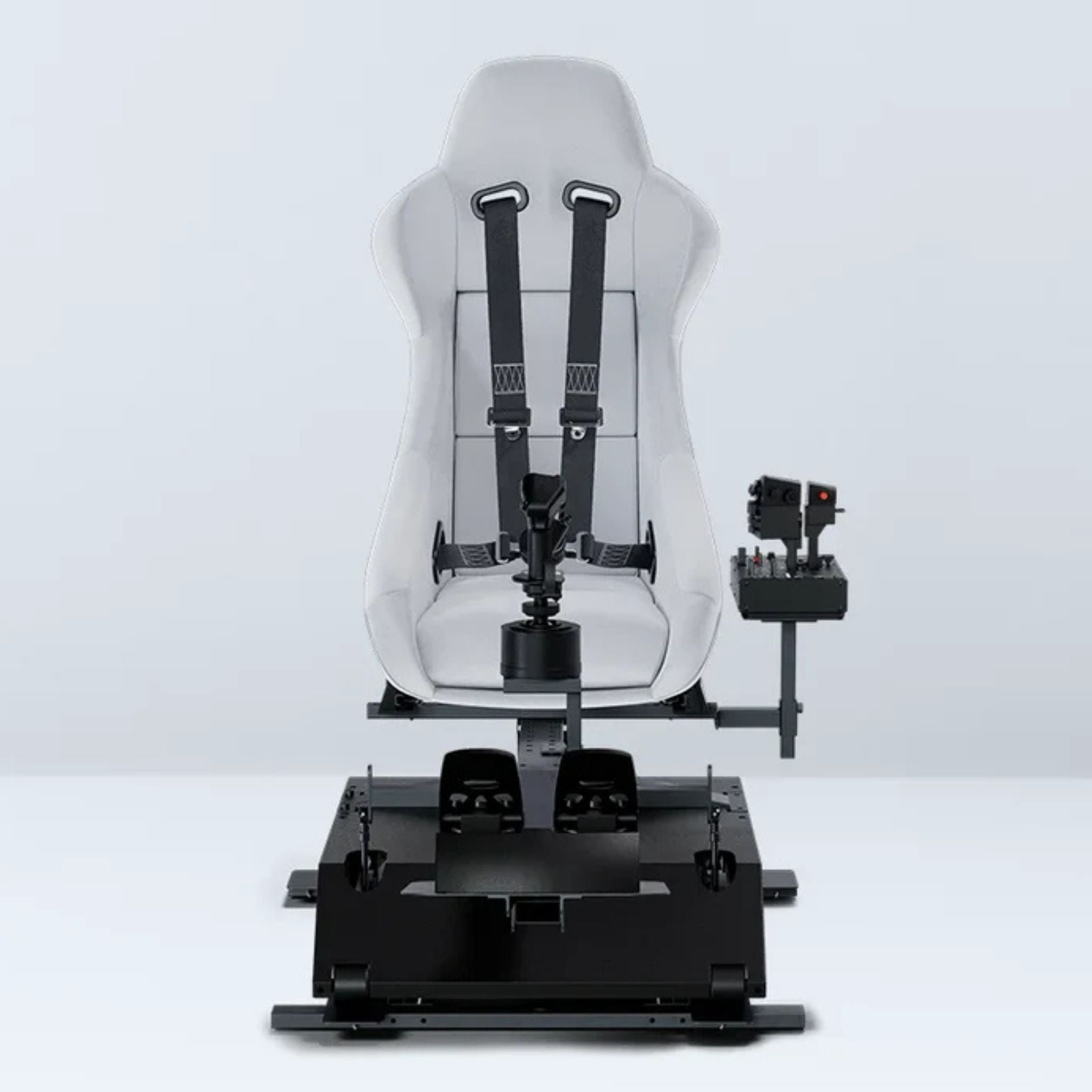

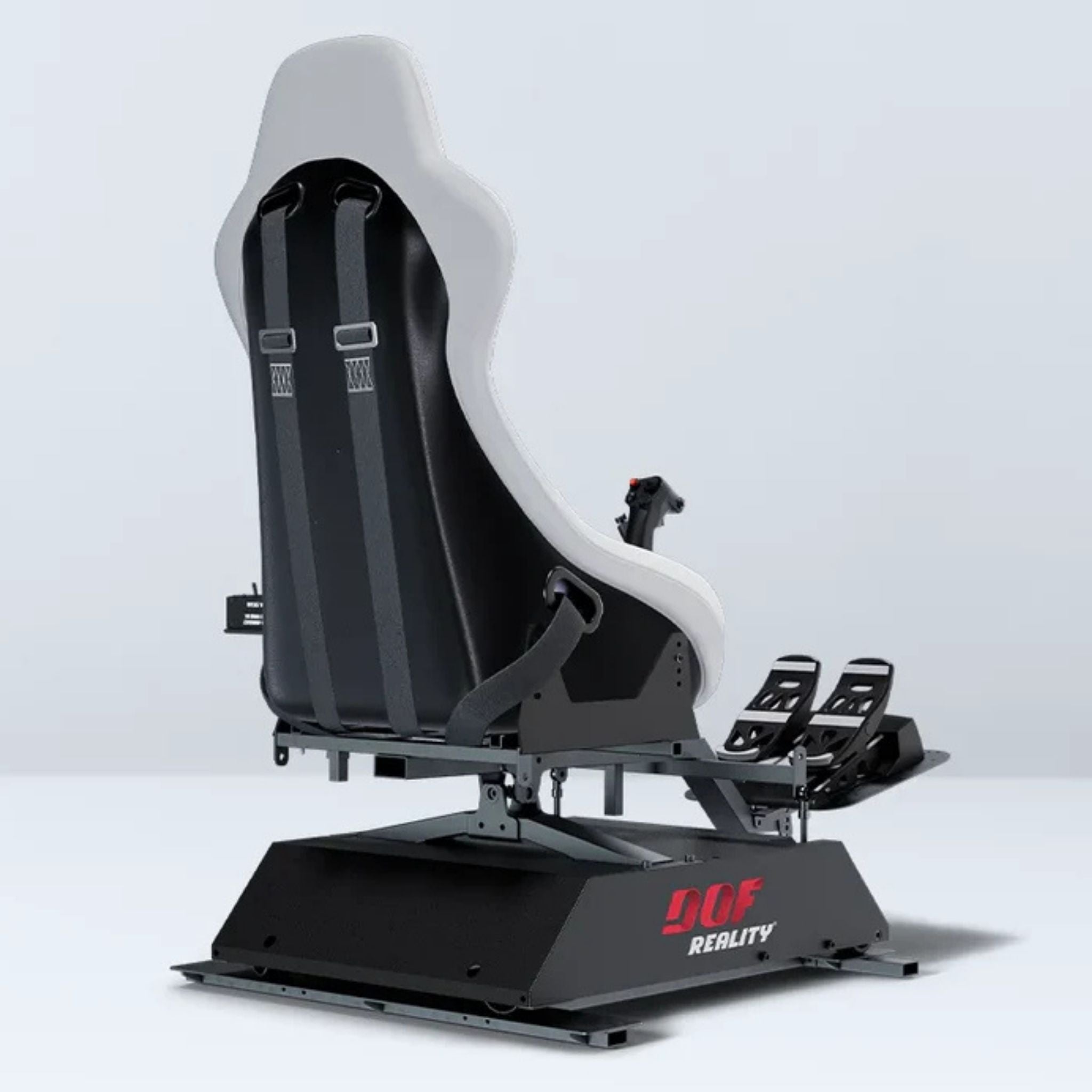

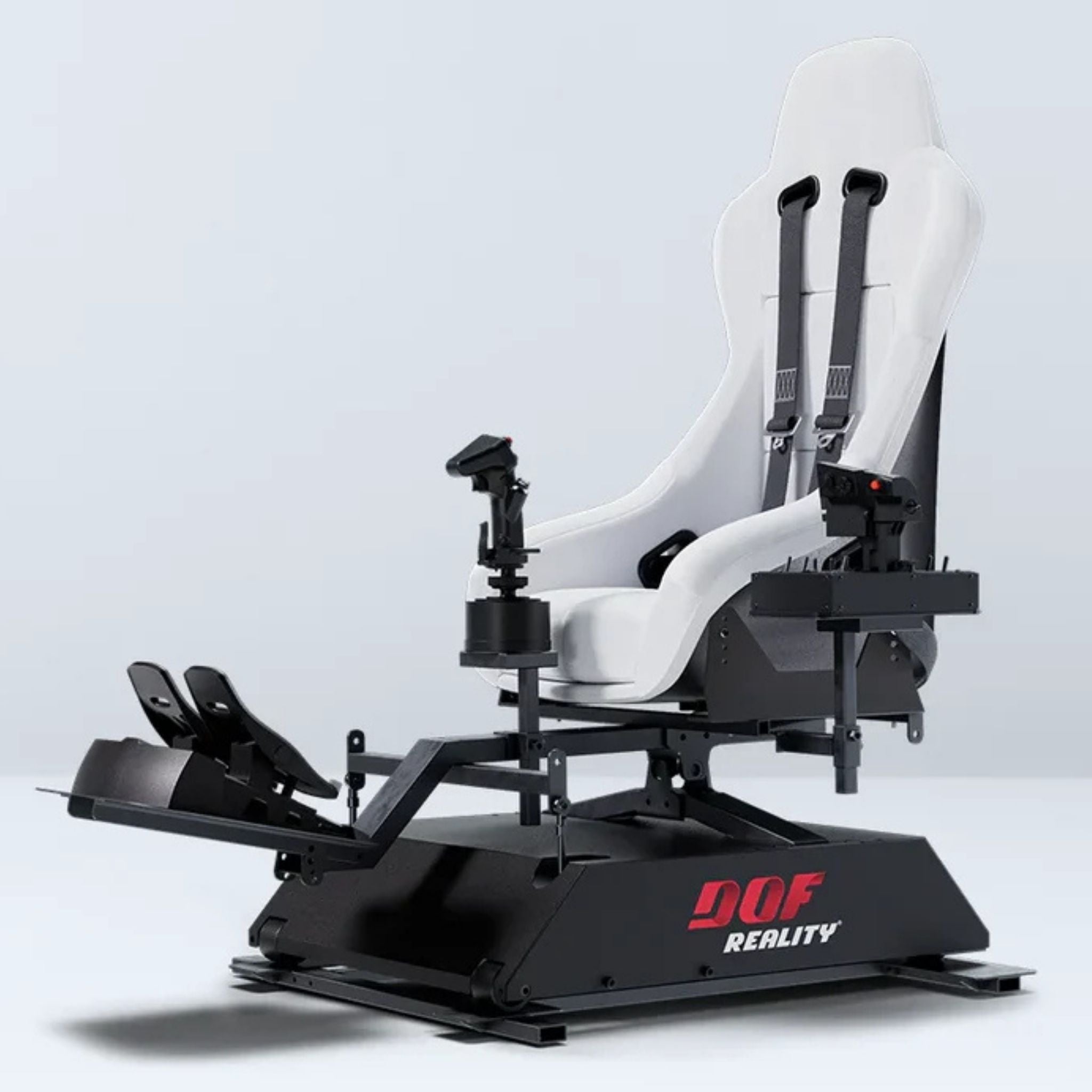

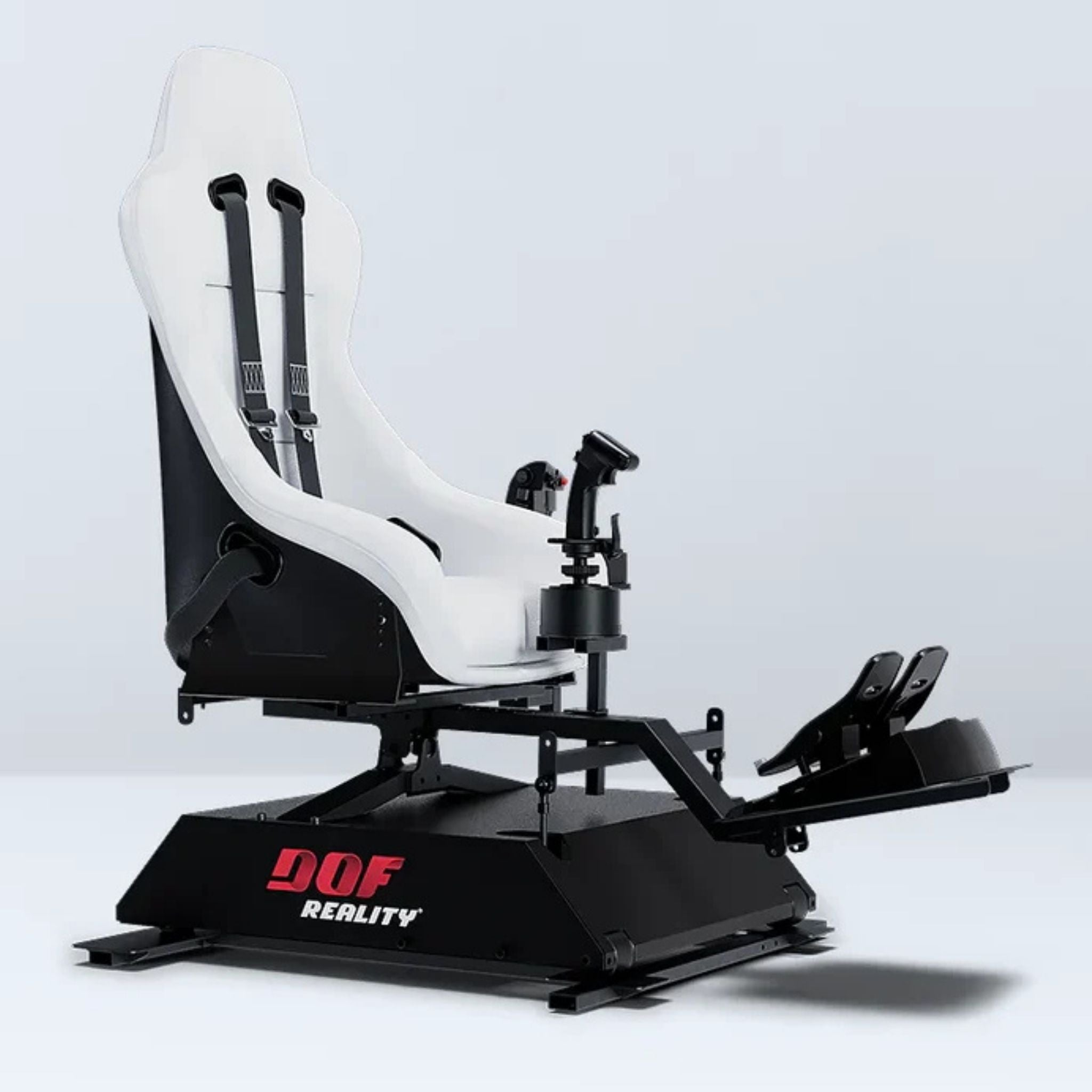

Experience the closest thing to real rotorcraft flight with the DOF Reality HERO H3 3-Axis Helicopter Motion Simulator Platform—a high-performance, full-motion system built for serious aviation enthusiasts, flight schools, and professionals. Designed specifically to replicate the nuanced dynamics of helicopter flight, the HERO 3 provides unmatched realism, responsiveness, and immersion.
Featuring three degrees of freedom—pitch, roll, and yaw—this simulator captures every subtle movement, from hover drift and coordinated turns to descent and tail rotor feedback. Equipped with precision gearboxes on each motor, the HERO H3 delivers extra-smooth, slow-motion accuracy, ideal for the delicate movements required in helicopter and flight simulation.
In our full-rig motion design, the entire cockpit—cyclic, collective, throttle, pedals, joystick, and monitor—moves with the seat, enabling authentic g-force replication through body pressure points. Combined with Sim Racing Studio software, the system translates telemetry data into vivid motion cues like turbulence, vibration, rotor torque, and collision impacts.
Whether you're simulating search-and-rescue flights, training for real-world flight, or enjoying immersive heli experiences at home, the HERO H3 is your all-in-one, professional-grade helicopter simulator platform—backed by global support and a robust warranty.
Features
-

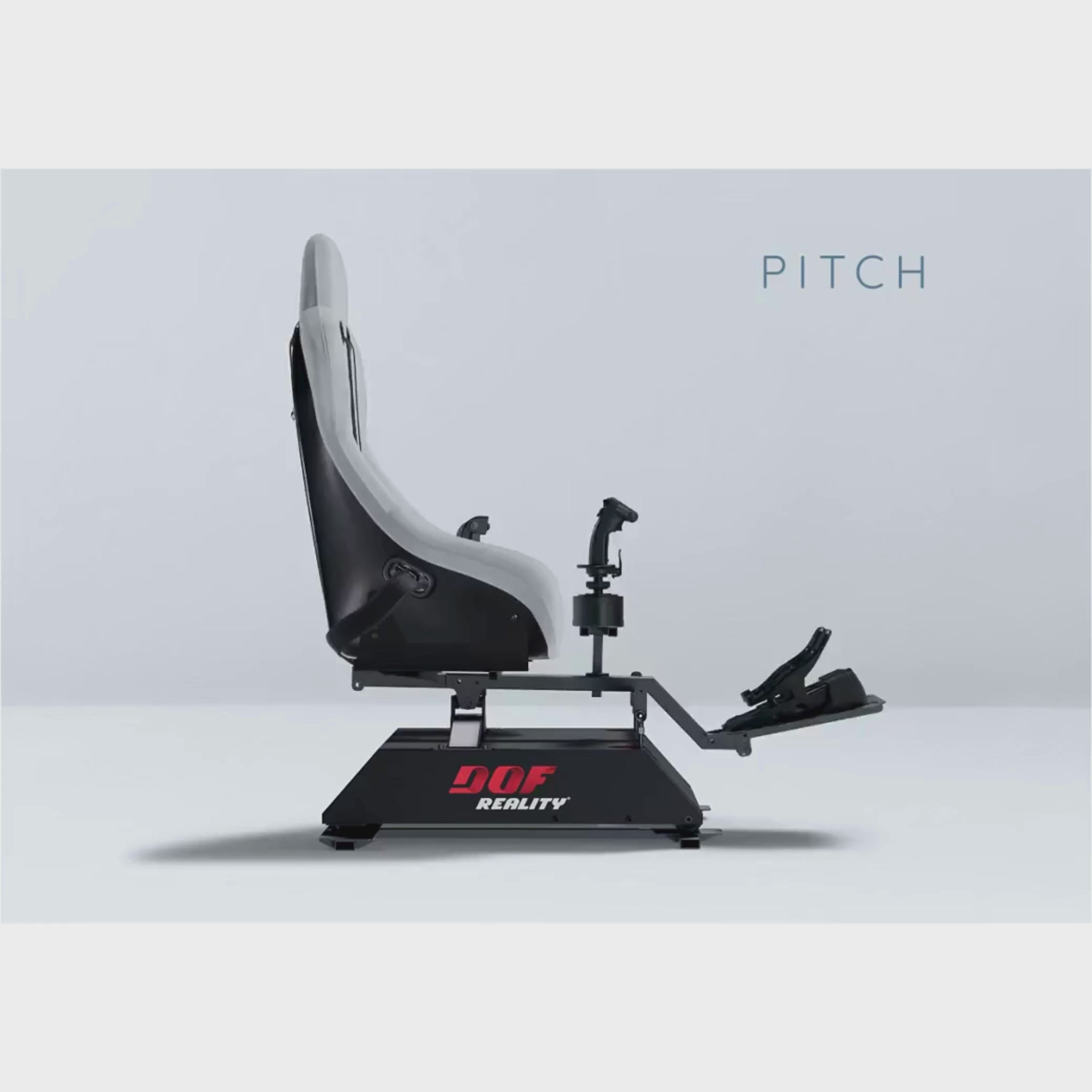

3 DOF Helicopter Motion (Pitch, Roll, Yaw): Accurately simulates climb, descent, hover drift, and yaw rotation.
-
Enhanced Gearbox Motors: Smooth, slow-motion responsiveness optimized for precise helicopter controls.
-
Full-Rig Synchronization: Moves seat, monitor, cyclic, pedals, collective, throttle, and joystick together.
-
Realistic G-Force Feedback: Simulates body pressure points to replicate in-cockpit physical sensations.
-
Flight-Ready Versatility: Ideal for helicopter, fixed-wing, and racing simulations without hardware changes.
-
Sim Racing Studio Integration: Converts real-time telemetry into motion feedback for turbulence, vibration, and impacts.
-
Universal Compatibility: Works with 8020 rigs, custom frames, and popular heli sim control systems.
-
Trusted Industry Leader: Built by DOF Reality—motion simulator pioneers since 2014.
-
24/7 Global Support & Warranty: Dedicated technical service and manufacturer-backed assurance.
What's Included
M2 DOF Reality® ready to play includes:

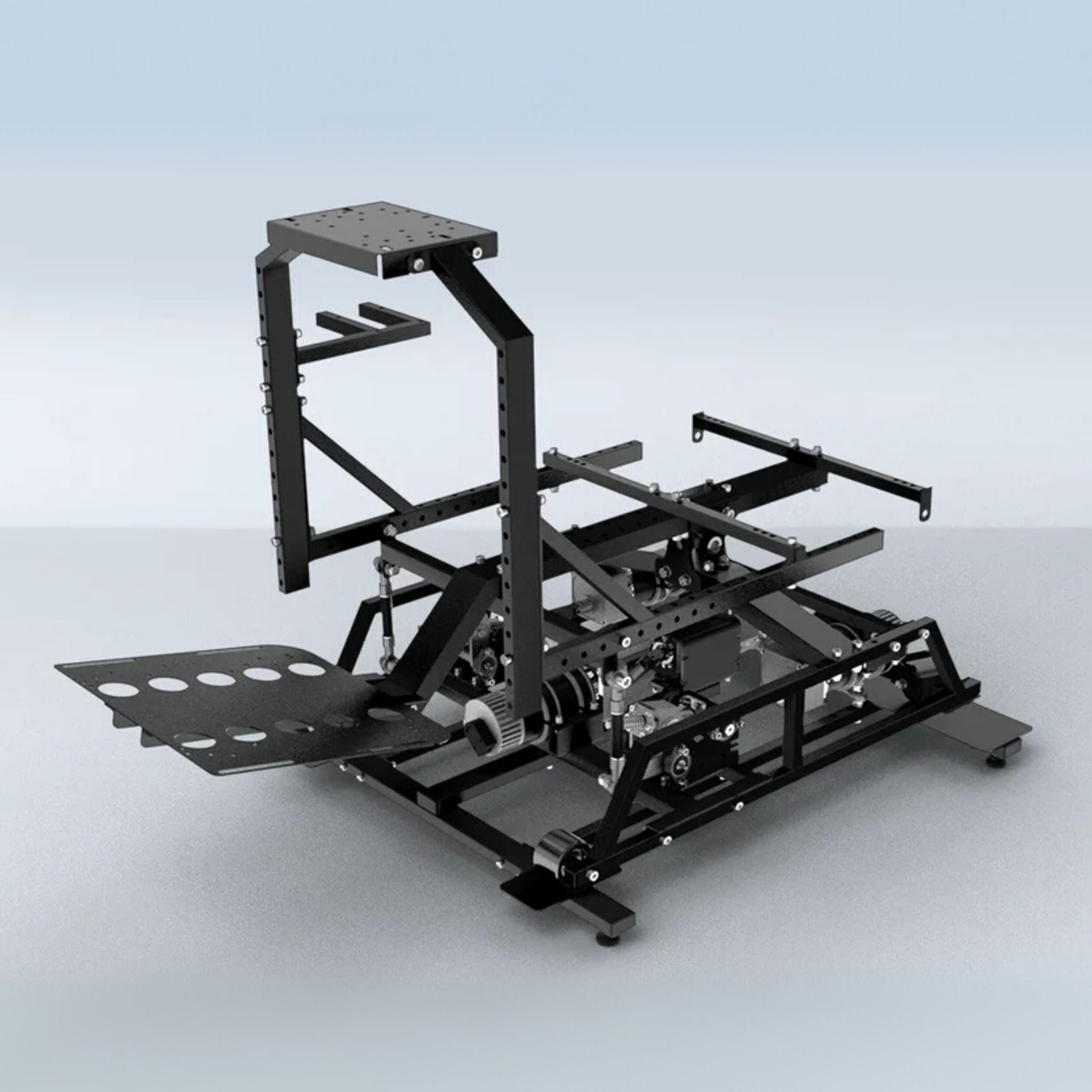

- Rigid metal rig for normal & F1 pose
- Mounts for seat or sliding rails
- Integrated power drive motors
- 100-240 control unit with USB
- SimRacingStudio license
- Quick assembly tools
- 1 year full warranty
Specifications
| Specification |
Details |
| Degrees of Freedom (Axis) |
3 DOF (Pitch + Roll + Yaw/Rear Traction) |
| Full Platform Motion |
YES |
| Range of Motion |
20° |
| Speed |
50 cm/s (86°/s) |
| Torque |
25 n/m |
| Acceleration |
0.7G T / 0.5G L |
| Power Consumption |
750 Watt (peak) |
| Box Weight (Size) |
1) 28kg (90 x 33 x 20cm)
2) 29.97kg (60 x 40 x 30cm) |
| Floor Footprint |
3×5, 2 ft H (100×150, 60 cm H) |
| Material Type |
Commercial grade metal profiles |
| Supported Pilot Weight |
330 lbs / 150 kg |
| Warranty |
Full 1 year |
| Upgradable |
Compatible with H6 upgrade |
Available Options
Warranty & System Accessories
Extended Product Warranty (+1 Year)
Adds one additional year of coverage beyond the standard warranty, protecting your DOF Reality platform from unexpected repair or replacement costs. Applies only to DOF Reality products and options.
MagicBox for PS / Xbox Motion (Console Users)
Run your DOF Reality motion platform without a Windows PC. The MagicBox hosts SimRacingStudio directly and sends motion data from PlayStation or Xbox games to the platform. Ideal for console-only users. Motion support only.
Mobility & Setup
Transportation Wheels
Adds two heavy-duty front wheels for easy movement of the platform. Allows one person to lift and reposition the system quickly for transport, storage, or event use.
DOF Reality Anti-Vibration Mat (2–3 DOF Platforms)
High-density rubber tile system designed to reduce vibration, minimize noise, and protect flooring. Improves stability and overall simulator performance.
Cable Extension Set (2–3 DOF Platforms)
Extended cables that allow the control box to be placed farther from the platform when needed. Ideal for custom setups while maintaining clean cable management.
Seating Options
Sparco R100 Seat (Most Common Choice)
Foldable steel-frame seat with improved padding and side bolsters for comfort and support during long sessions. Includes sliders and mounting hardware.
Sparco R333 Seat
Modern sport-style seat with ergonomic padding and supportive bolsters. Features dual side adjustment levers and integrated harness slots. Includes sliders and mounting hardware.
Sparco Sprint Seat
FIA-approved competition bucket seat with a durable steel frame and suspension-style bottom cushion. Compatible with 5-point or 6-point harnesses. Includes brackets, sliders, and mounting hardware.
Safety & Control Accessories
4-Point Harness (Red)
Durable racing-style harness designed to improve immersion and keep users securely positioned during motion simulation.
eBreak Emergency Stop Button
Instantly stops all platform motion in case of emergency. Easily mounted within reach and compatible with all DOF Reality platforms.
Metal Cyber Cover
Protective steel enclosure that shields lower moving components from dust, debris, and accidental contact while improving safety and appearance.
Protection Cover
Flexible cover designed to shield moving platform components during operation. Compatible with H2, H3, P2, and P3 platforms.
Mounting & Control Accessories
Monitor Mount
VESA-compatible mount supporting a single monitor up to 33 lbs. Provides a stable and integrated display solution for your simulator setup.
Keyboard Holder
Adjustable mount that keeps your keyboard within easy reach during use. Compatible with most keyboards, including popular wireless models.
Pedals Quick Release System
Allows quick swapping between racing and flight pedals while enabling adjustable pedal positioning.
HoneyComb Alpha & Bravo Mount Adapter
Adapter designed to securely mount HoneyComb flight controls to the simulator wheel plate.
Immersion & Feedback Upgrades
SRS UShake 6 Haptic System (Popular Upgrade)
Adds immersive vibration feedback through six built-in transducers that simulate engine vibration, suspension movement, and road texture. Includes amplifier, sound card, and SRS software license.
SRS Hurricane Wind Package (Popular Upgrade)
Dynamic wind simulation system that adjusts airflow based on vehicle speed. Produces up to 30 percent more wind output than standard fan kits.
Buttkicker Mount
Mount designed for securely attaching a Buttkicker haptic transducer to the simulator platform for enhanced vibration feedback.
Flight Simulation Accessories
HOTAS Mounts Kit
Mounting solution for flight joystick and throttle systems. The joystick can be positioned centrally or on the side depending on user preference.
ProFlightTrainer PUMA X Helicopter Controls (Recommended for Helicopter Simulation)
Professional 8-axis helicopter control system with adjustable friction and ergonomic design. Plug-and-play USB compatibility with major flight simulators.
