Advanced Bucket Seat

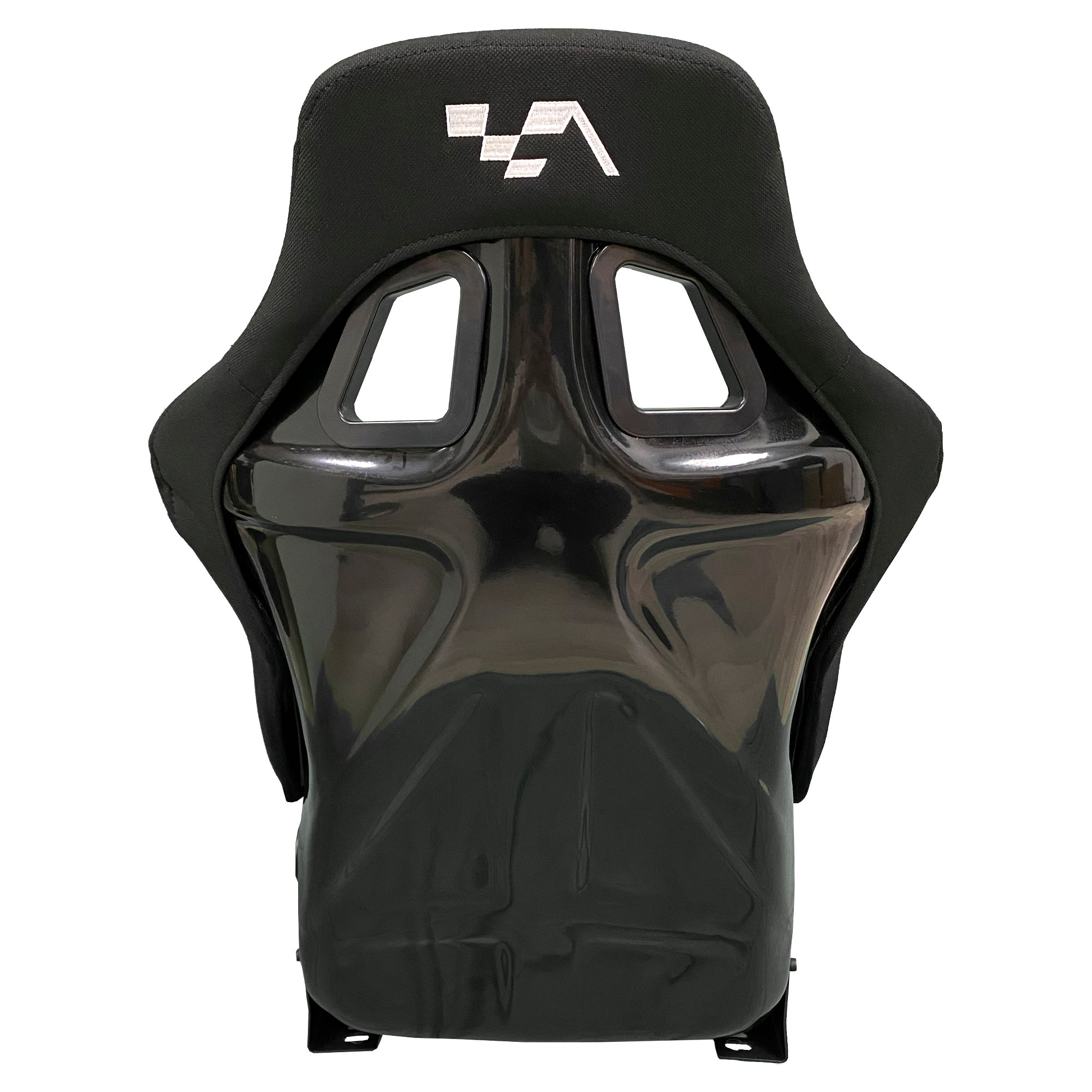

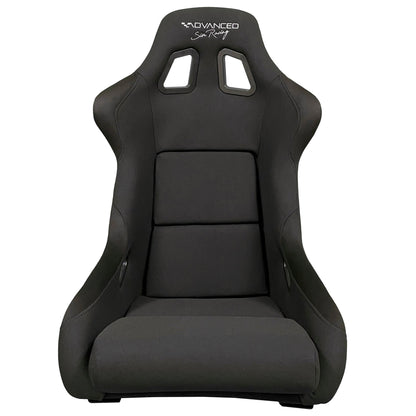

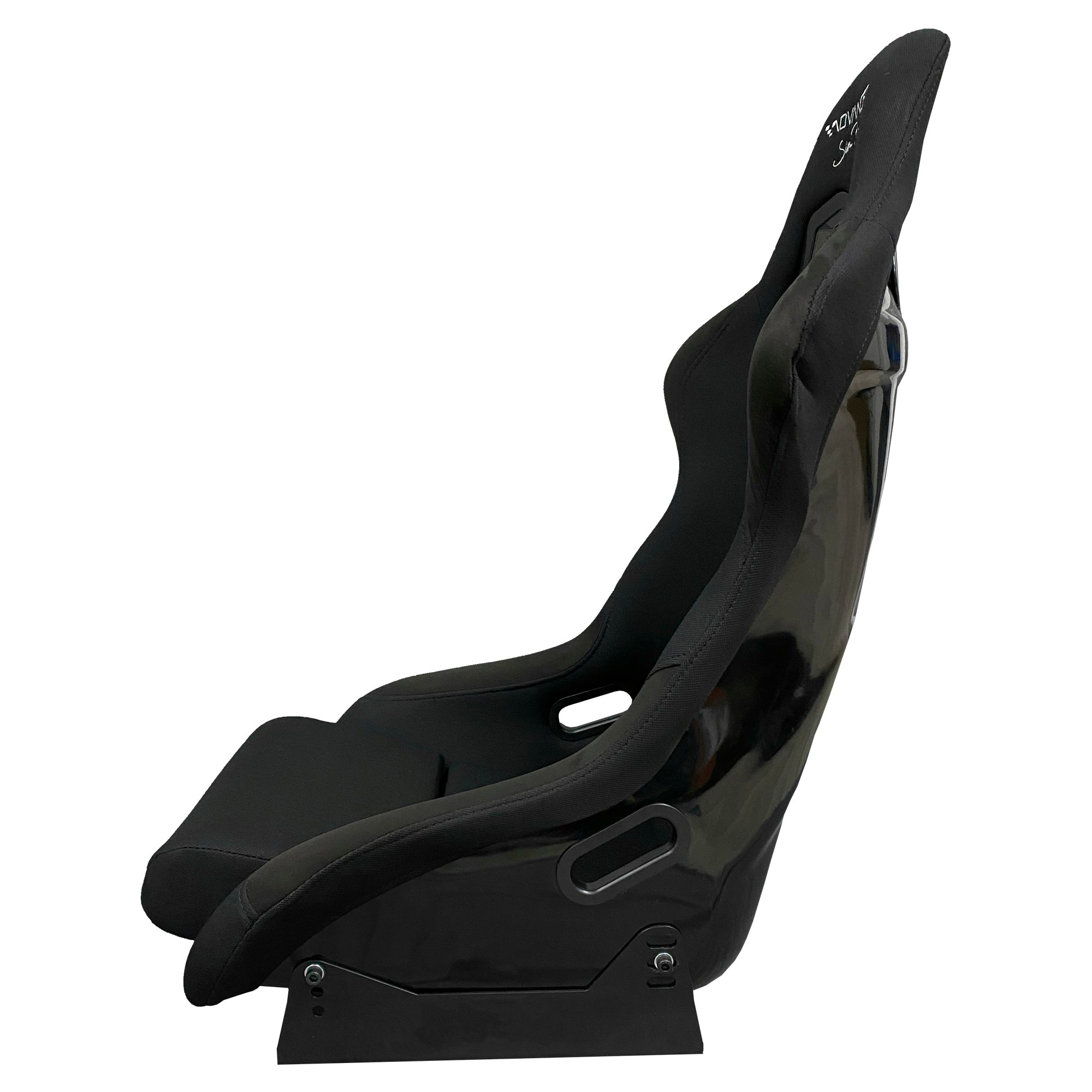

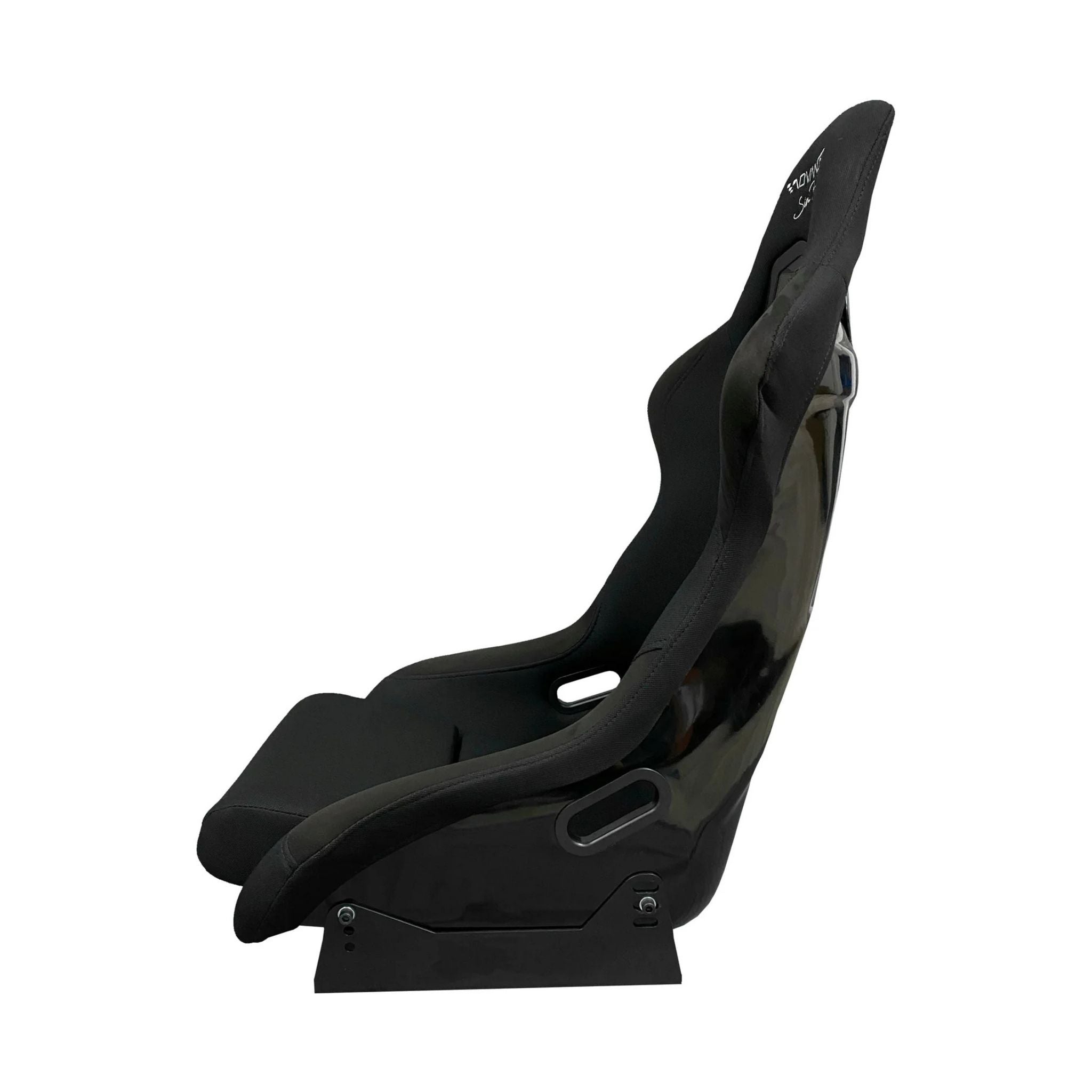

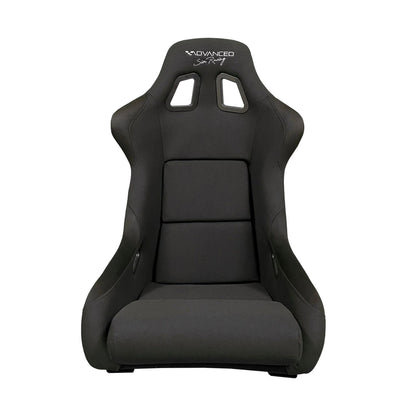

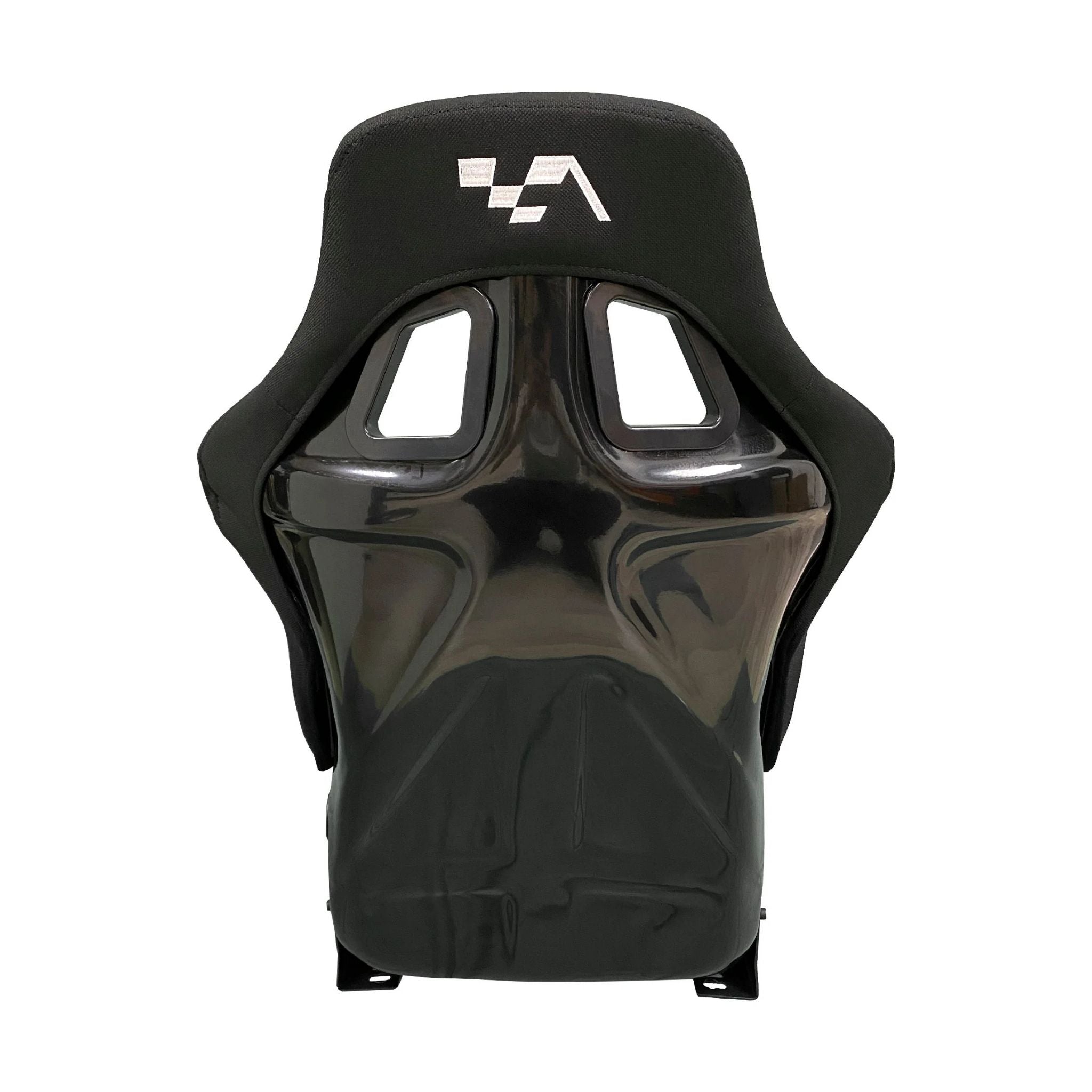

The Advanced Bucket Seat is built from high-quality fiberglass to deliver optimal racing performance while maintaining exceptional comfort. Its ergonomic design supports your entire body during long racing sessions, reducing fatigue and improving control. The seat includes side brackets for quick and easy mounting to any Advanced SimRacing-brand chassis, ensuring a secure and stable fit. Featuring a durable, breathable front material for longevity, it also comes with removable seat padding for personalized adjustment. Finished in sleek black with white stitching, the seat proudly displays the Advanced SimRacing logo on both the front and back of the headrest, combining performance, comfort, and style in one premium package.

What's Included

• Box 1 - 22" x 22" x 38"
• 1 x Advanced Bucket Seat
• 2 x Side mounting brackets

Specifications

Large:

• Seat width (shoulders) : 21"
• Seat width (lower back) : 14"
• Seat width (thighs) : 16"
• Back rest (vertical, from top to bottom) : 35"
• Back rest (horizontal at shoulders height) : 25"
• Seat length : 23"

Medium:

• Seat width (shoulders) : 19"
• Seat width (lower back) : 12"
• Seat width (thighs) : 15"
• Back rest (vertical, from top to bottom) : 35"
• Back rest (horizontal at shoulders height) : 23"
• Seat length : 22"

Installation Guide

• Without Seat Sliders

1. Install the 22" profiles on the chassis. Tighten the bolts holding the corner gussets to the 22" profile, but leave the bolts attaching the 22" profile to the chassis loose.
2. Install the seat brackets on the 22" profile. Make sure the inside edge of the seat bracket is flush with the inside edge of the 22" profile, then tighten the bolts holding the seat brackets on the 22" profile.
3. Install the seat in the brackets, be careful not to scratch the seat while doing this. If necessary, slide the 22" profile further apart.
4. Tighten the seat brackets to the seat in the desired position. Make sure you are using the same mounting holes on each side.
5. Make sure the space between the 22" profiles and the base is equal on each side to center the seat with the chassis. It is okay for the 22" profiles not to be parallel with each other, as long as the seat is centered and straight.
6. Your rig is ready to go!

• With Seat Sliders

1. Install the 22" profiles on the chassis. Tighten the bolts holding the corner gussets to the 22" profile, but leave the bolts attaching the 22" profile to the chassis loose.
2. Install the seat sliders on the seat brackets. Make sure the inside edge of the seat slider is flush with inside edge of the seat bracket.
3. Install the seat slider and seat bracket assembly on the seat while it is off the chassis. Make sure you are using the same mounting holes on each side. Be careful not to scratch the seat while doing this.
4. Make sure the two seat sliders are at the same locking position.
5. Bend the U handle bar for the seat sliders to make it wider or narrower depending on fitment.
6. Install the U handle bar while being careful not to hurt your fingers.
7. Install the seat assembly on the 22" profiles.
8. Tighten both front or rear bolts holding the sliders on the 22" profile.
9. Slide seat forwards or backwards to have access to the other bolts. Tighten them.
10. Center the seat with the chassis by moving the whole 22" profile and seat assembly. Be careful not to scratch the profiles.
11. Tighten the corner gusset bolts that were left loose at the beginning.
12. Your rig is ready to go!
