Advanced VESA (Set of 3)

If you’ve been struggling to align your triple monitor setup perfectly, the Advanced VESA (Set of 3) is the solution you need. Designed by our product team for precision and ease, this adjustable VESA adapter allows you to quickly and accurately position your monitors, achieving flawless alignment in just minutes. Unlike other adapters on the market, the Advanced VESA features a complete position-locking system—once you’ve set your ideal configuration, you can lock it in place to prevent any unwanted movement. This ensures your screens stay perfectly aligned, even after vibrations, bumps, or extended use, giving you a stable, professional-grade triple monitor setup every time.

What's Included

• Box 1 - 8" x 6" x 6"
• 3 x Advanced VESA plate 1
• 3 x Advanced VESA plate 2
• 3 x Advanced VESA plate 3
• 6 x 50mm set screws
• 6 x 30mm set screws
• 6 x 1/4" screws
• 6 x M8 Screws (12mm)
• 6 x M8 Screws (16mm)
• 6 x M8 T-Nuts

Specifications

• Compatible with all of our aluminum profile triple monitor stands
• Attachment provided: VESA 100mm/75mm
• Adjustment possibilities
• Move up or down on the vertical Z-axis (Heave) : +/- 0.5" for a total range of 1"

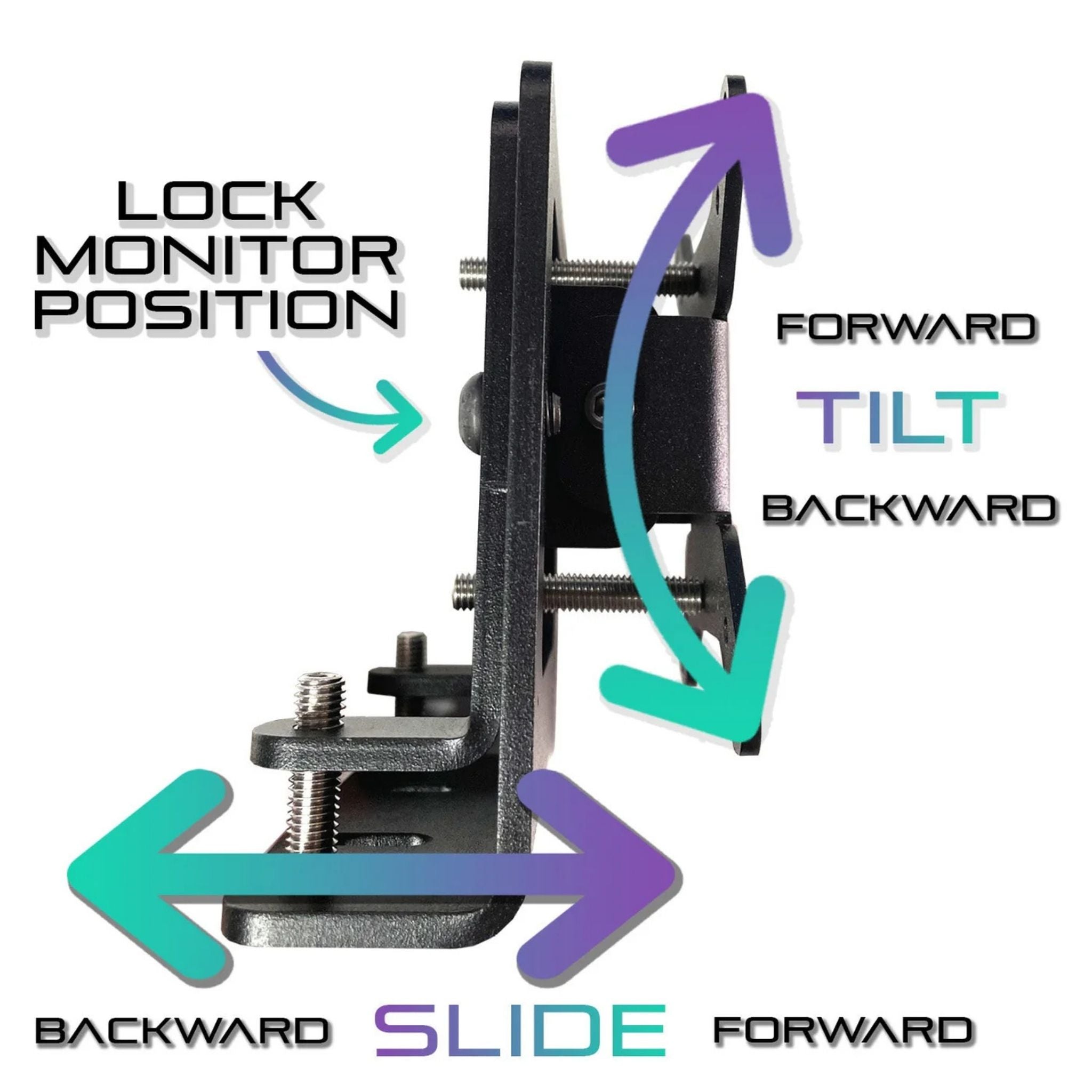

• Slide forward or backward on the horizontal X-axis (Surge) : +/- 0.5" for a total range of 1"
• Move left or right on the horizontal Y-axis (Sway) : Can be done by adjusting the horizontal position of the supporting T-Nut that secures the Advanced VESA inside the aluminum profile channel on your monitor stand

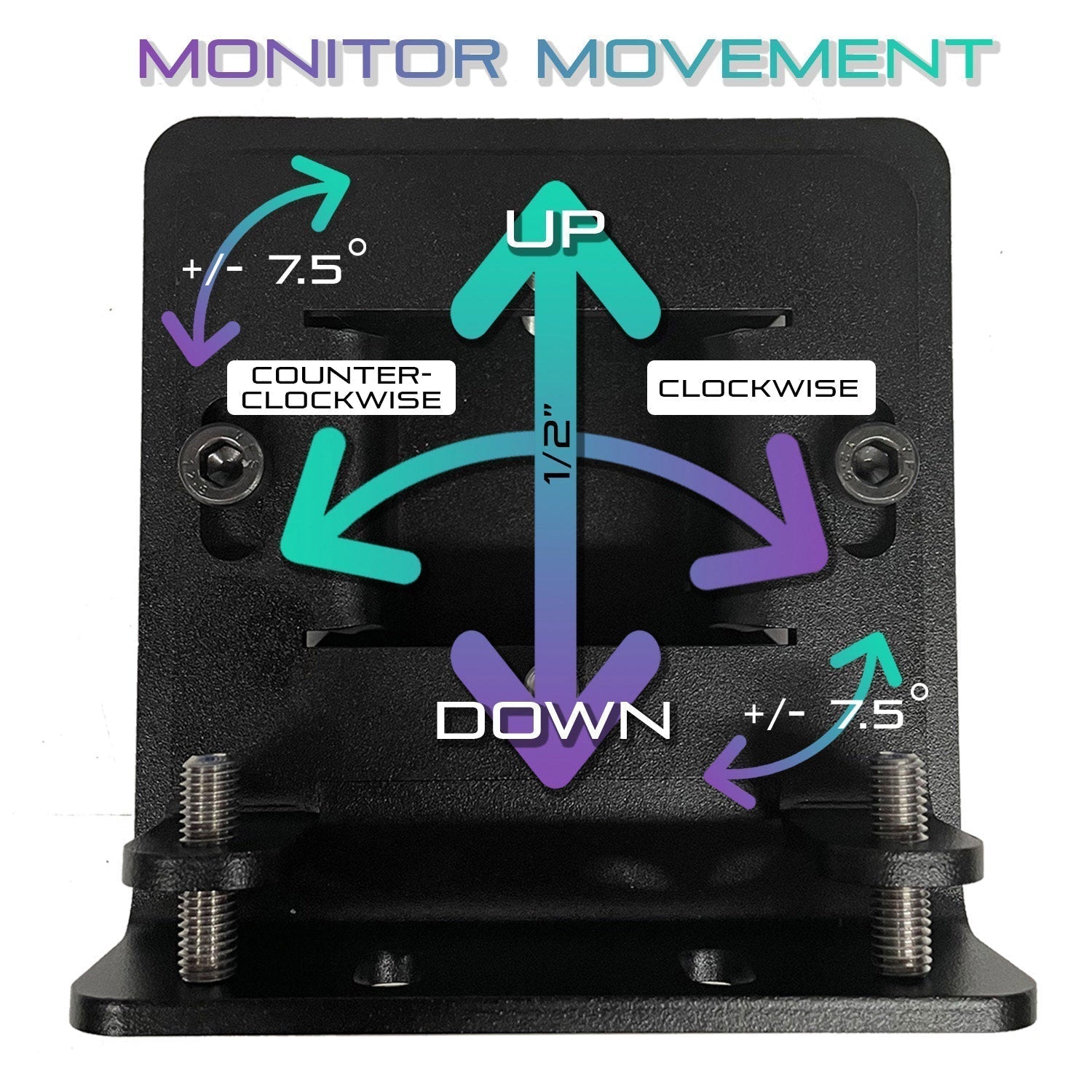

• Tilt clockwise or counterclockwise (Roll) : +/- 7.5° for a total range of 15°

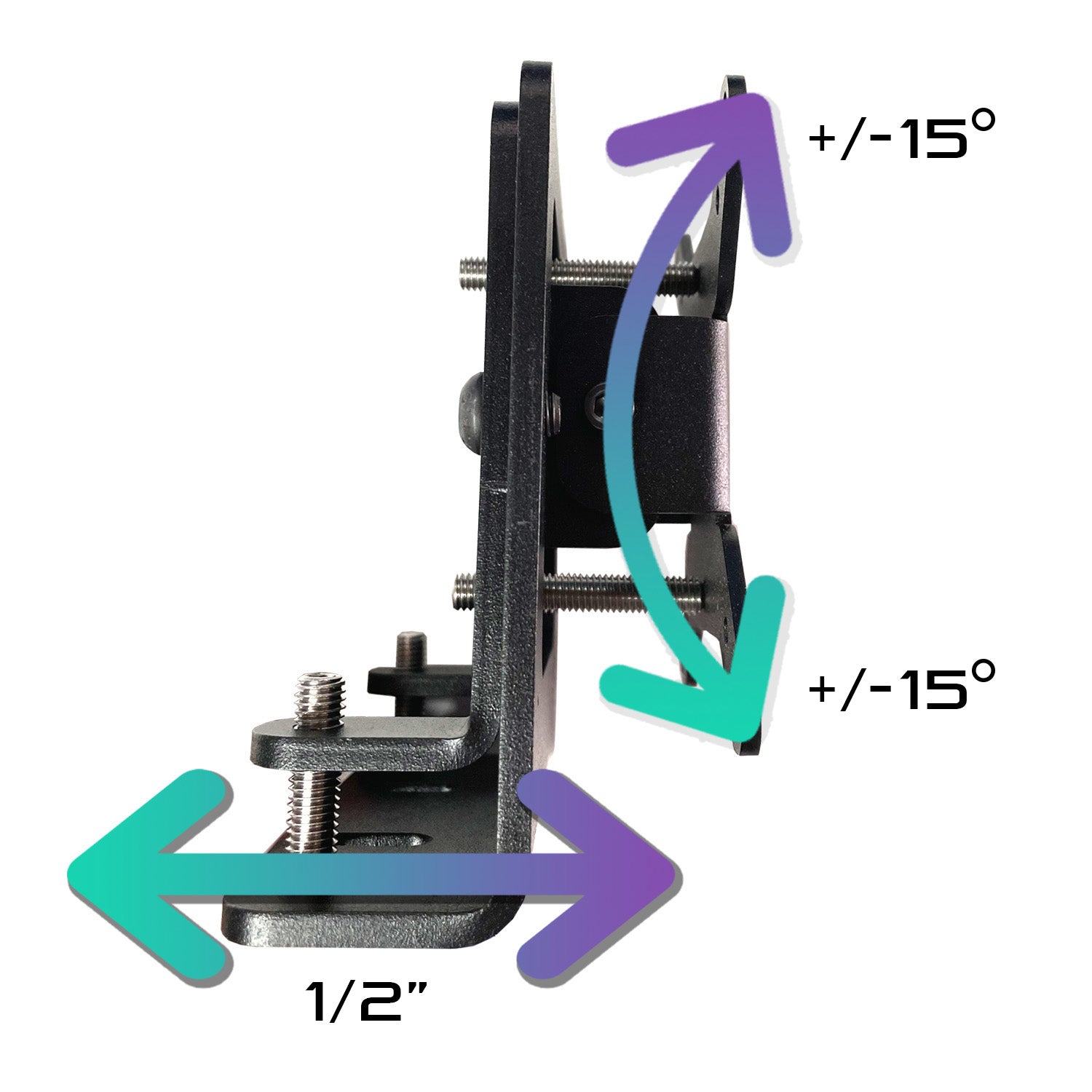

• Tilt forward or backward (Pitch) : +/- 15° for a total range of 30°
• Refer to the images provided in this product page for a visual representation of the adjustment possibilities

Documents

Advanced VESA Assembly Guide by Advanced SimRacing (PDF)

More assembly guides available on our dedicated page.

Shipping and Lead Time

• FREE SHIPPING to all of the Continental U.S. and Canada (excluding Yukon, Northwest Territories & Nunavut).
• We ship from Montreal in Canada
• Our typical lead time before shipping out orders is 5 to 7 business days. This varies depending on the purchased items and our shipping queue.

• Once the items have shipped, transit time typically takes between 2 and 4 business days
• Please note that all large items, such as our SimRacing Chassis, Monitor Stands and Racing Seats, might not arrive on the same day as other parts of your order. Because of their weight and size, these boxes get sorted differently at our shipping partner's logistics hub.

Warranty

Advanced SimRacing-brand products come with a free and complete lifetime replacement warranty that covers any and all hardware durability issue and damage stemming from proper assembly and residential usage of the product. All hardware parts, aluminum beams and steel plates or gussets are covered under this warranty. Please contact info@advancedsimracing.com for information or claims in regards to this lifetime warranty.

Warranty coverage limitations:

• Any condition resulting from other than ordinary residential wear or any use for which the product was not intended, such as use in rental, contract trade or commercial use
• Any condition resulting from incorrect or inadequate manipulation, maintenance or care of the product
• Damage resulting from misuse, abuse, negligence, accidents or shipping damage
• Any esthetic damage such as scratches and chipping that might occur during normal residential manipulation, assembly and operation of the product
• Normal and expected wear and tear
• Damages incurred during transportation by our shipping partners or by the customers upon reception of the product
• Dissatisfaction due to buyer's remorse.
