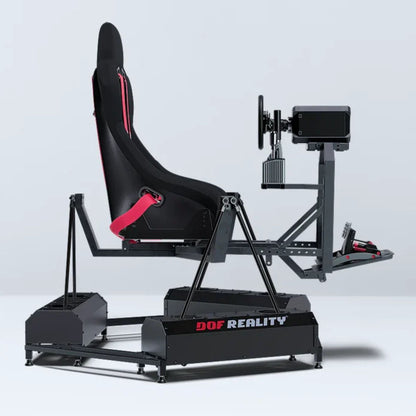

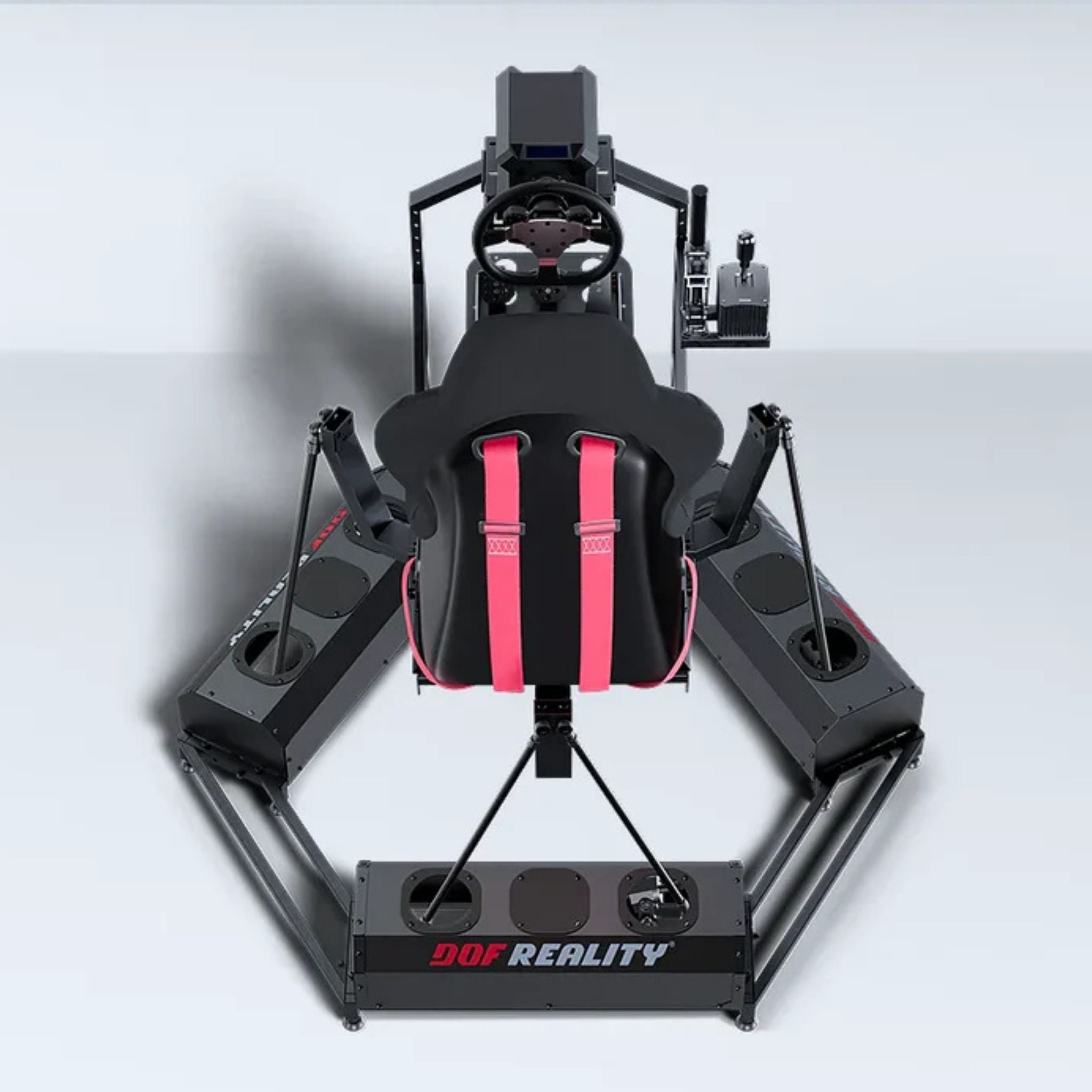

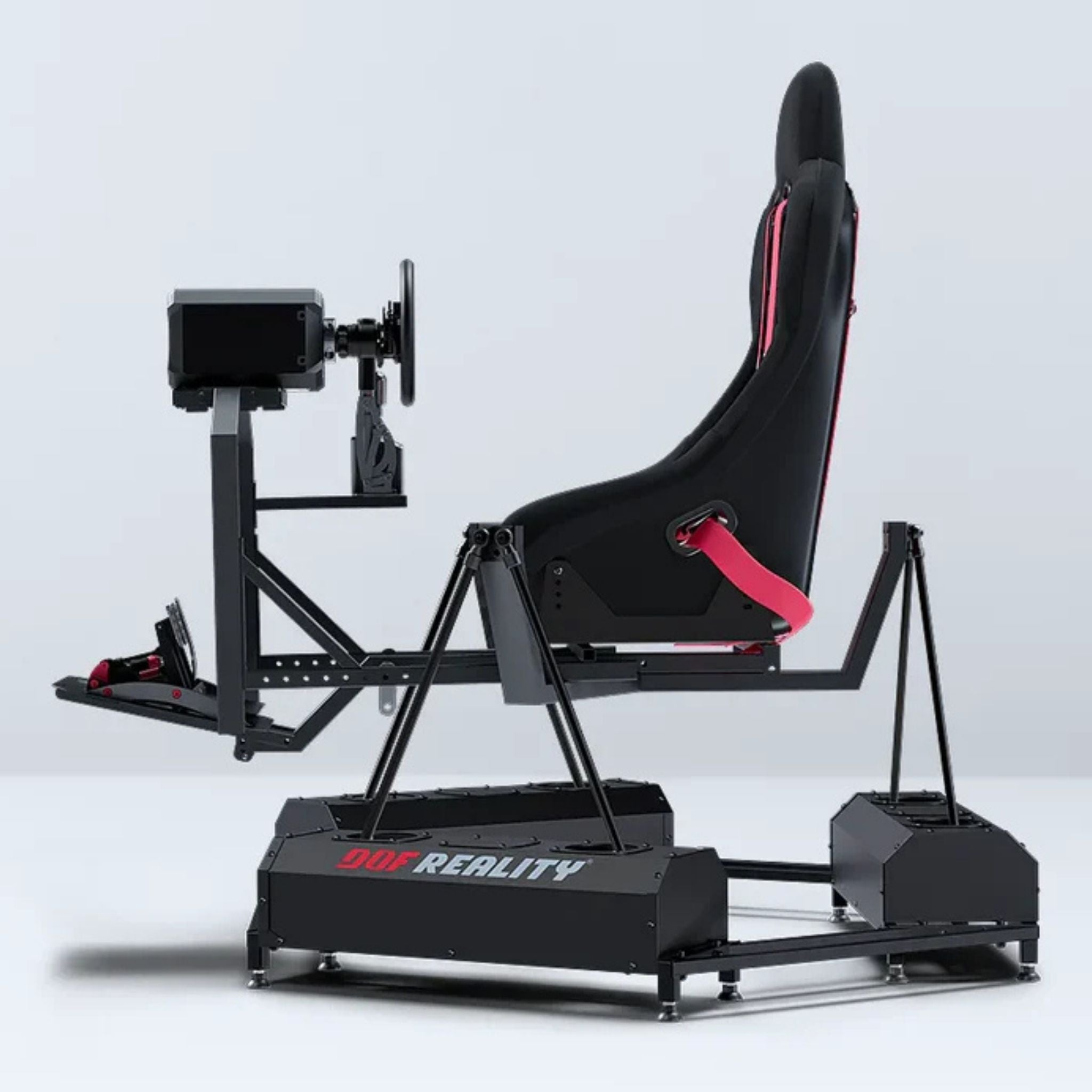

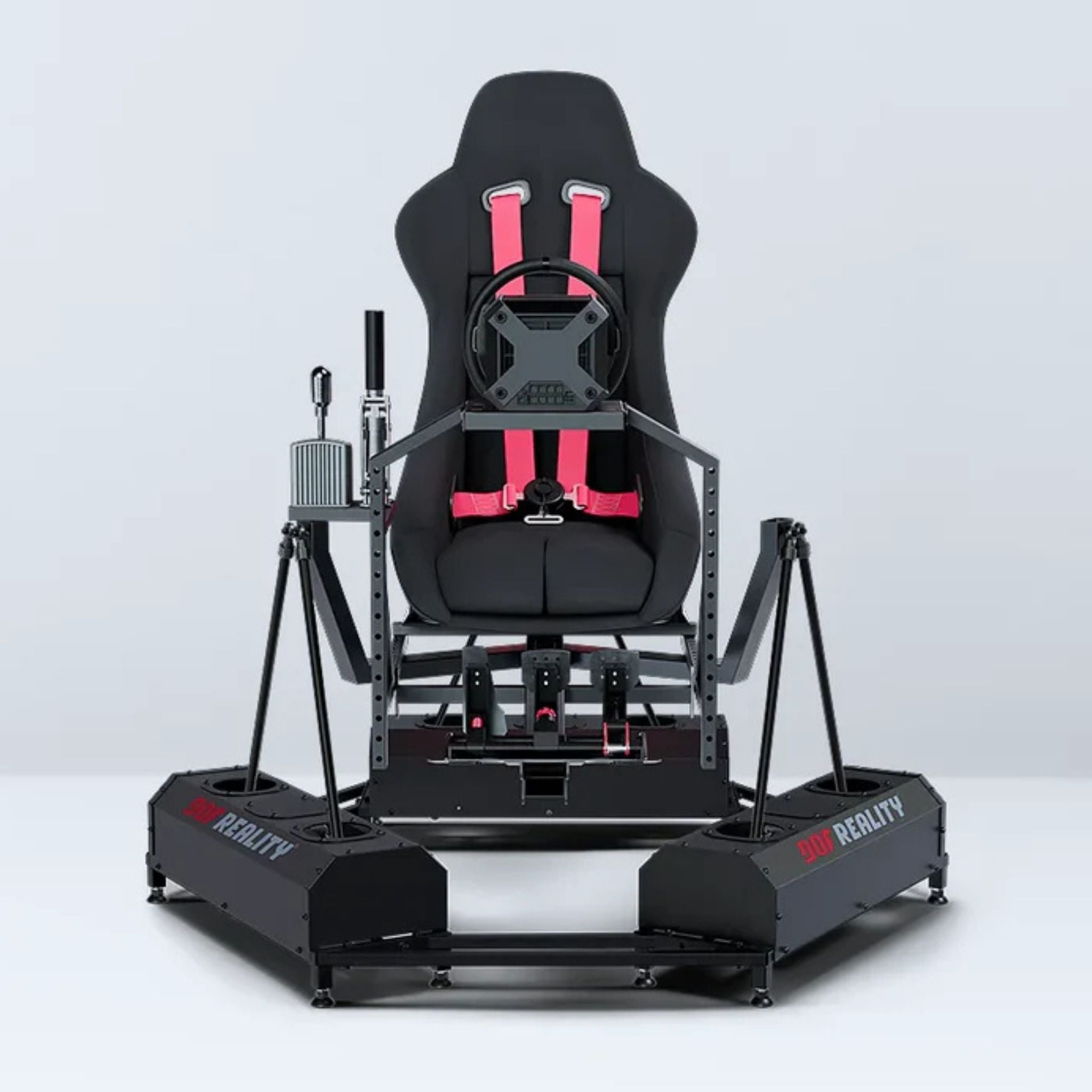

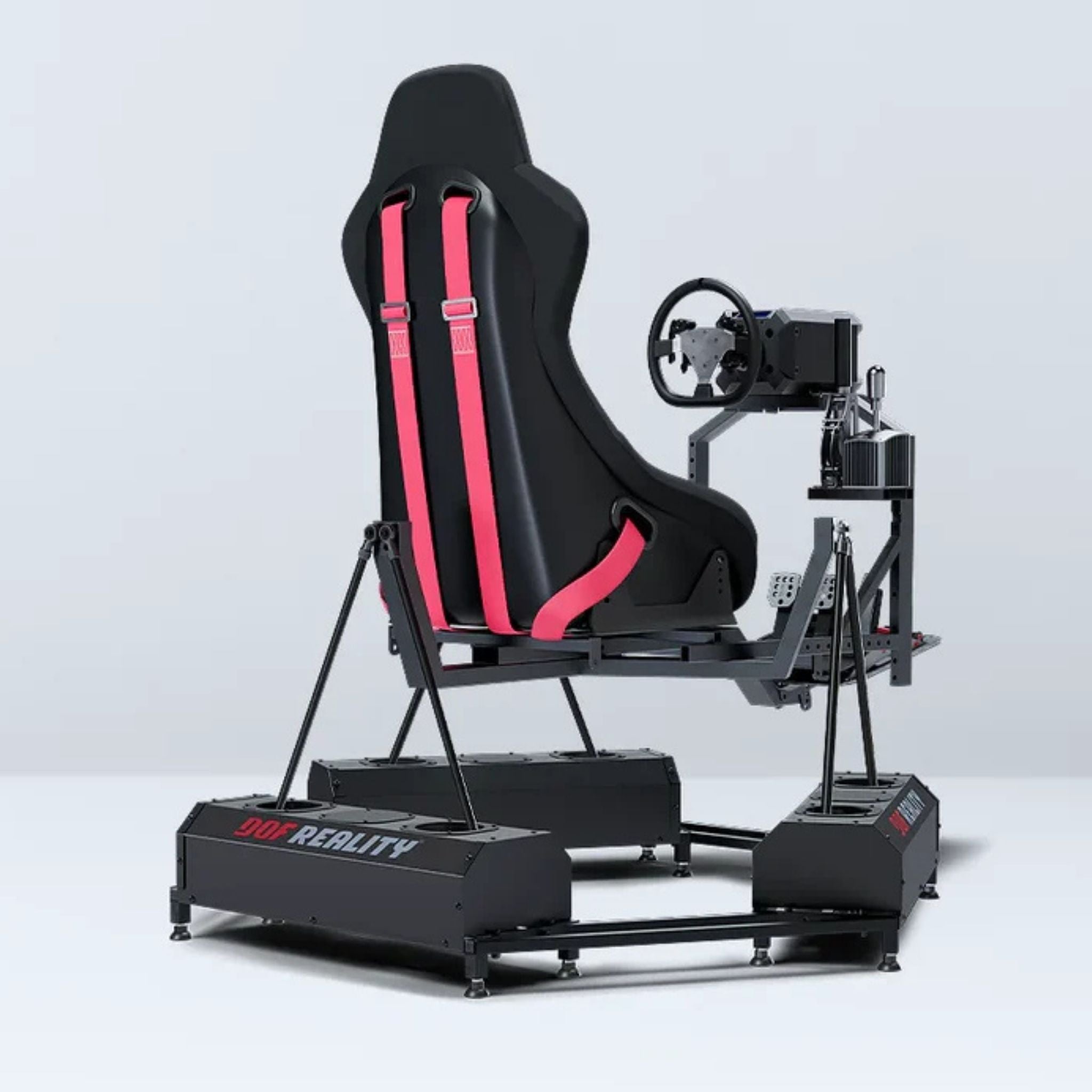

Push the boundaries of simulation with the DOF Reality HERO H6, the most advanced and immersive 6-axis motion simulator platform built specifically for elite racing simulation. Designed for true enthusiasts and professionals, the HERO 6 delivers an uncompromising, full-body experience that captures every nuance of the track—from aggressive drifts to subtle weight shifts.

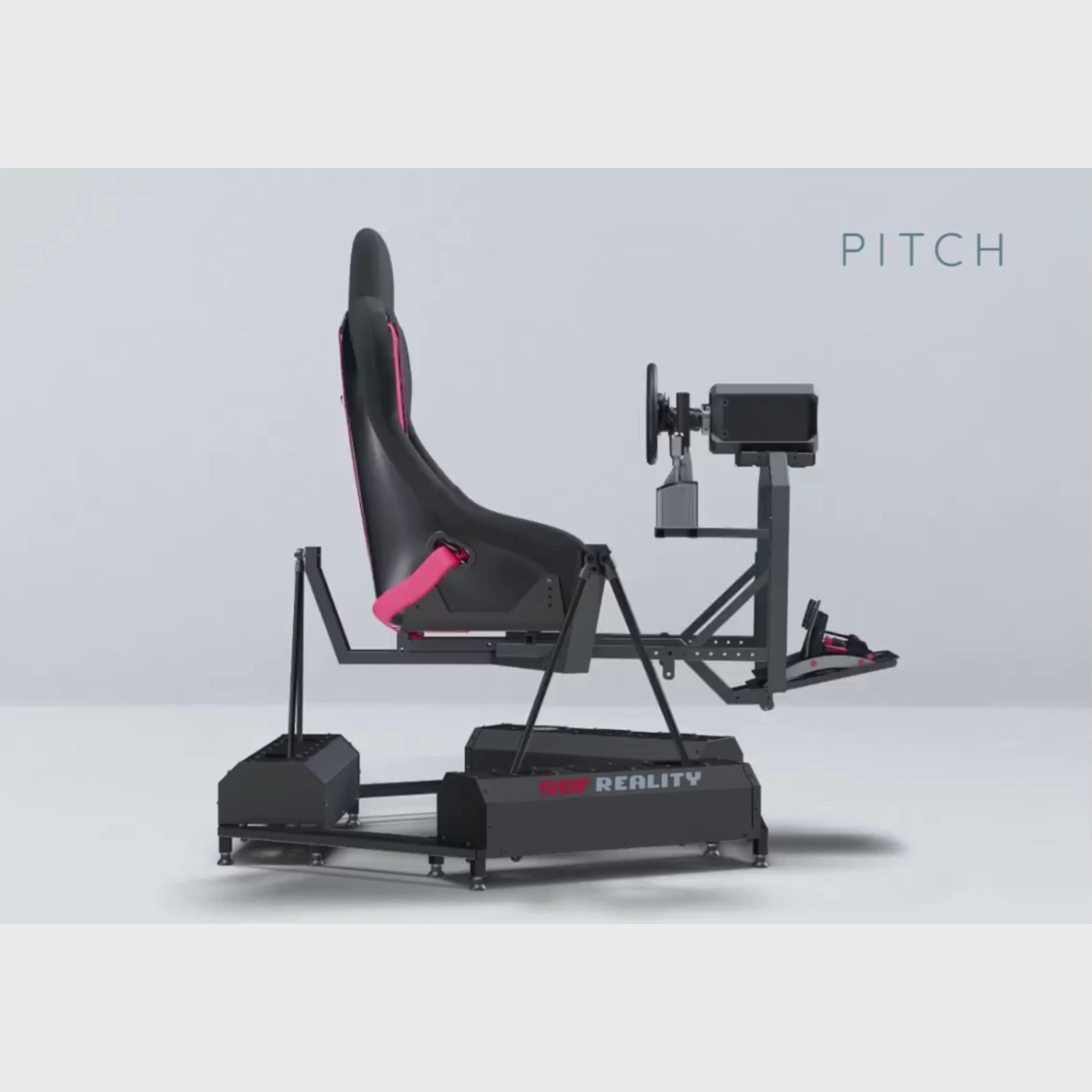

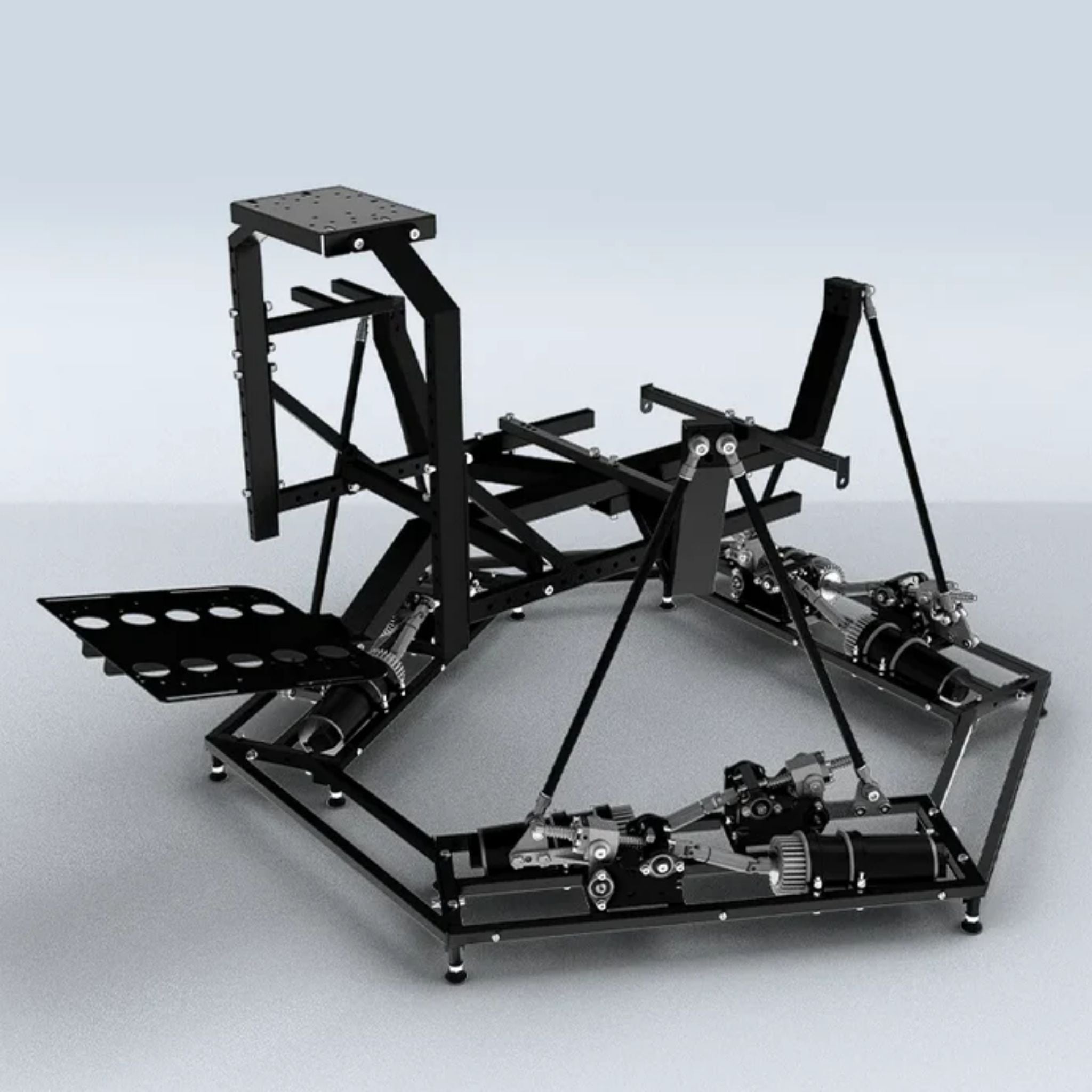

Engineered with six degrees of freedom, the HERO H6 simulates heave, roll, pitch, and yaw, plus true side-to-side (sway) and front-to-back (surge) motion. With independent front and rear roll centers, it replicates understeer, oversteer, traction loss, and body roll like no other system. The result? Every shift in momentum, tire slip, or apex adjustment feels exactly like it would in a real car.
This full-rig platform moves your seat, wheel, pedals, joystick, and monitor in sync, allowing for g-force replication via muscle tension, just like in an actual race car. Powered by Sim Racing Studio software, the system processes real-time telemetry to deliver detailed road feel, gear shifts, vibration, and crash feedback.
The HERO H6 isn’t just a racing simulator—it’s the pinnacle of motion technology, bringing realistic, professional-grade performance to sim racers, training facilities, and motorsport teams worldwide.
Features
-
True 6 Degrees of Freedom (DOF): Simulates roll, pitch, yaw, heave (up/down), surge (forward/back), and sway (left/right).
-
Dual Roll Centers: Independent front/rear movement replicates realistic body yaw and chassis dynamics.
-
Full-Rig Motion Integration: Seat, wheel, pedals, joystick, and monitor move as one for unmatched immersion.
-
Authentic G-Force Simulation: Recreates muscle pressure points to mirror acceleration and traction forces.
-
Real-Time Telemetry Feedback: Sim Racing Studio software interprets in-game data for bumps, drifts, shifts, and crashes.
-
Professional Build Quality: Rugged design supports long sessions and heavy use.
-
Versatile Compatibility: Works with major sim racing gear, cockpit frames, and titles like iRacing, Assetto Corsa, and F1.
-
Future-Proof Platform: Designed for expandability, modular upgrades, and long-term use.
-
24/7 Support & Warranty: Includes manufacturing warranty and global customer service for peace of mind.
What's Included
M2 DOF Reality® ready to play includes:
- Rigid metal motors covers
- Metal rig for normal & F1 pose
- Mounts for seat or sliding rails
- Integrated power drive motors
- 100-240 control unit with USB
- SimRacingStudio license
- Quick assembly tools
- 1 year full warranty
Specifications
| Specification |
Details |
| Degrees of Freedom (Axis) |
6DOF (Pitch, Roll, Yaw, Surge, Sway, Heave) |
| Full Platform Motion |
YES |
| Range of Motion |
17° |
| Speed |
50 cm/s (86°/s) |
| Torque |
28 n/m |
| Acceleration |
0.5G all directions |
| Power Consumption |
1500 Watt (peak) |
| Box Weight (Size) |
1) 58.95kg (100 x 95 x 35cm)
2) 23.8kg (60 x 40 x 40cm)
|
| Floor Footprint |
4×5, 2 ft H (120×150, 60 cm H) |
| Material Type |
Commercial grade metal profiles |
| Supported Pilot Weight |
330 lbs / 150 kg |
| Warranty |
Full 1 year |
| Upgradable |
Final installment |
Available Options
Warranty & System Accessories
Extended Product Warranty (+1 Year)
Adds one additional year of coverage beyond the standard warranty, protecting your DOF Reality platform from unexpected repair or replacement costs. Applies only to DOF Reality products and options.
MagicBox for PS / Xbox Motion (Console Users)
Run your DOF Reality motion platform without a Windows PC. The MagicBox hosts SimRacingStudio directly and sends motion data from PlayStation or Xbox games to the platform. Ideal for console-only users. Motion support only.
Racing Control Bundles
MOZA R5 Direct Drive + SR-P Lite Pedals Bundle (Great Entry Setup)
Features a 5.5 Nm direct drive motor with smooth, responsive feedback. Built with aluminum, leather, and steel for durability. Includes SR-P Lite two-pedal set for an immersive entry-level racing experience.
MOZA R9 CS Direct Drive + SR-P Lite Pedals Bundle (Popular Upgrade)
Delivers 9 Nm of direct drive torque for more powerful and precise feedback. Paired with the CS V2P steering wheel featuring carbon fiber shifters and customizable controls. Includes SR-P Lite pedals.
MOZA GS Direct Drive + SR-P Lite Pedals Bundle (Performance Upgrade)
Combines the R9 V2 wheelbase with the GS V2P GT racing wheel for a premium feel and high-performance control. Offers 9 Nm of torque with enhanced precision and comfort.
Seating Options
Sparco R100 Seat (Most Common Choice)
Foldable steel-frame seat with improved padding and side bolsters for comfort and support during long sessions. Includes sliders and mounting hardware.
Sparco R333 Seat
Modern sport-style seat with ergonomic padding and supportive bolsters. Features dual side adjustment levers and integrated harness slots. Includes sliders and mounting hardware.
Sparco Sprint Seat
FIA-approved competition bucket seat with a durable steel frame and suspension-style bottom cushion. Compatible with 5-point or 6-point harnesses. Includes brackets, sliders, and mounting hardware.
Safety & Control Accessories
4-Point Harness (Red)
Durable racing-style harness designed to improve immersion and keep users securely positioned during motion simulation.
eBreak Emergency Stop Button
Instantly stops all platform motion in case of emergency. Easily mounted within reach and compatible with all DOF Reality platforms.
Monitor Mount
VESA-compatible mount supporting a single monitor up to 33 lbs. Provides a stable and integrated display solution for your simulator setup.
Keyboard Holder
Adjustable mount that keeps your keyboard within easy reach during use. Compatible with most keyboards, including popular wireless models.
Immersion & Feedback Upgrades
SRS UShake 6 Haptic System (Popular Upgrade)
Adds immersive vibration feedback through six built-in transducers that simulate engine vibration, suspension movement, road textures, and more. Includes amplifier, sound card, and SRS software license.
SRS Hurricane Wind Package (Popular Upgrade)
Dynamic wind simulation system that adjusts airflow based on vehicle speed. Produces up to 30 percent more wind output than standard fan kits.
Buttkicker Mount
Mount designed for securely attaching a Buttkicker haptic transducer to the simulator platform for enhanced vibration feedback.
Flight Simulation Accessories
HOTAS Mounts Kit
Mounting solution for flight joystick and throttle systems. The joystick can be positioned centrally or on the side depending on user preference.
HoneyComb Alpha & Bravo Mount Adapter
Adapter designed to securely mount HoneyComb flight controls to the simulator wheel plate.
ProFlightTrainer PUMA X Helicopter Controls (Recommended for Helicopter Simulation)
Professional 8-axis helicopter control system with adjustable friction and ergonomic design. Plug-and-play USB compatibility with major flight simulators.
Platform Enhancements & Mobility
Lift Supports (6 DOF Platforms)
Adds three heavy-duty lift supports to increase load capacity and improve stability. Recommended for users over 300 lbs or heavier configurations.
Transportation Wheels (6 DOF Platforms)
Heavy-duty front wheels that allow the platform to be easily moved by lifting the rear. Ideal for repositioning, transport, or event use.
Setup & Utility Accessories
DOF Reality Anti-Vibration Mat (6 DOF Platforms)
High-density rubber tile system designed to reduce vibration, minimize noise, and protect flooring. Enhances stability and overall simulator performance.
Cable Extension Set (6 DOF Platforms)
Extended cables that allow the control box to be placed farther from the platform when needed. Ideal for custom setups while maintaining clean cable management.
